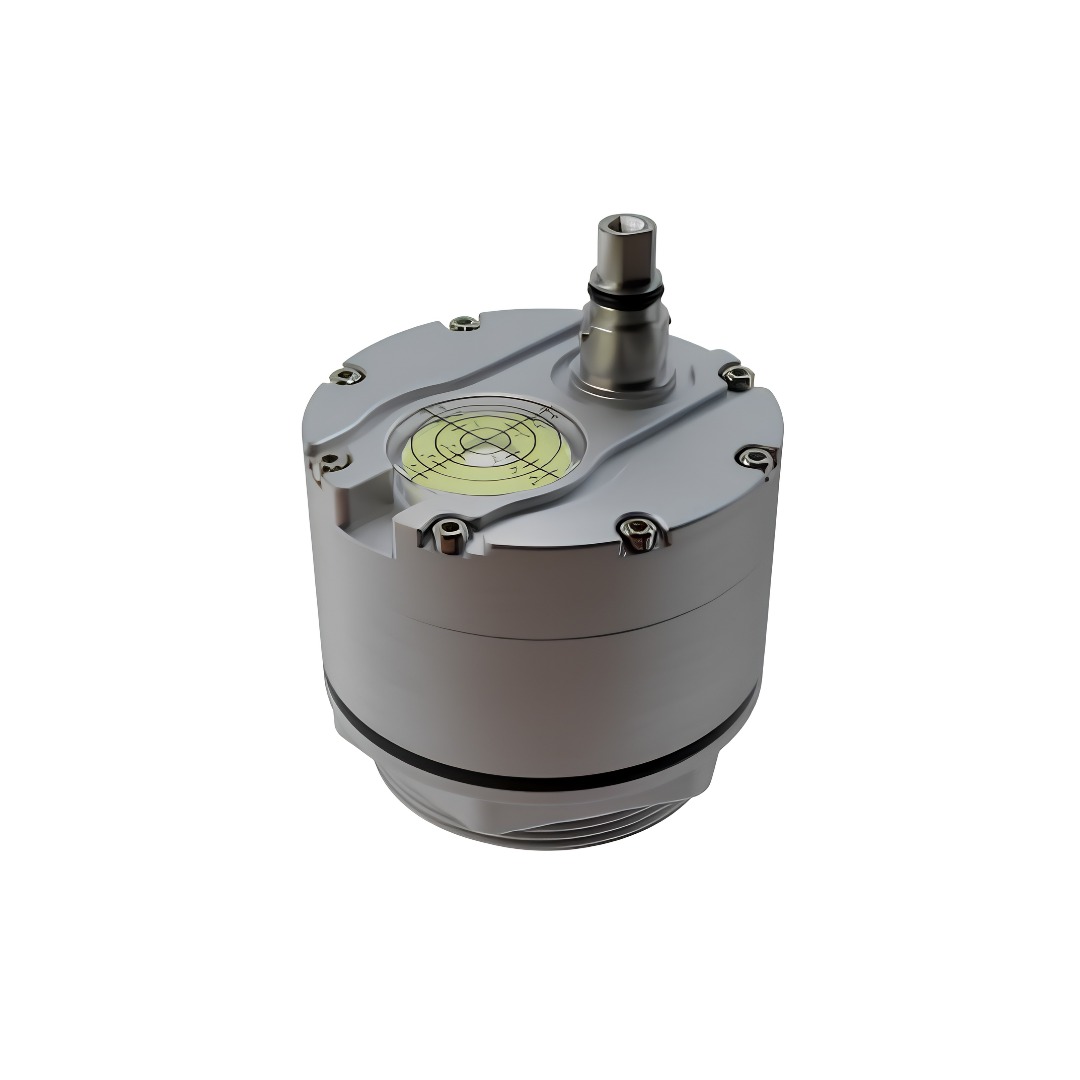

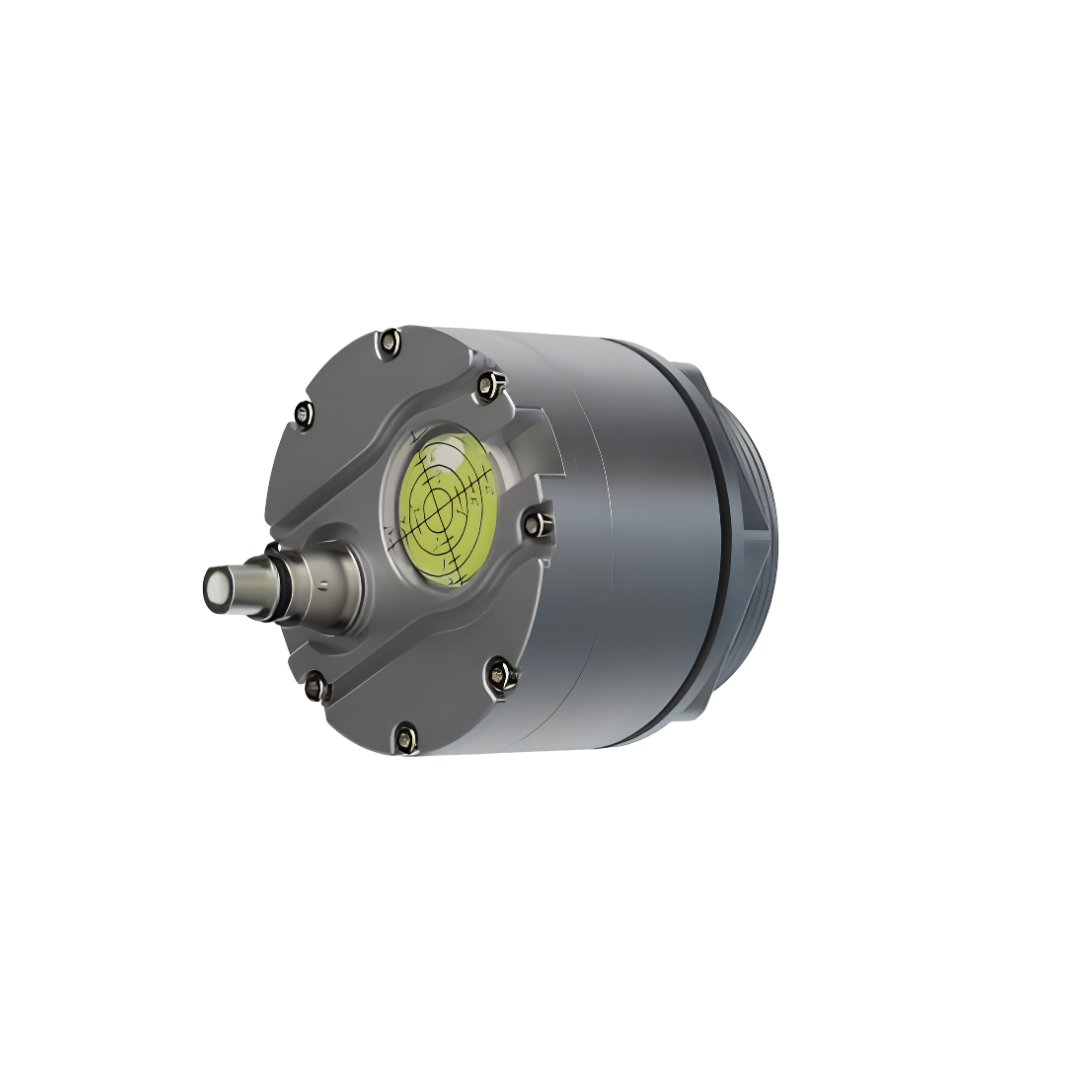

In-Situ Level TROLL NC

Available in three measurement ranges—15 m (49 ft), 30 m (98 ft), and 50 m (164 ft)—it delivers reliable performance in surface water, dredging, and coastal applications. A narrow 5-degree beam angle minimizes interference, allowing for flexible site selection in challenging environments. Built to withstand harsh weather conditions, the Level TROLL NC is an ideal solution for long-term, low-maintenance monitoring.

Engineered for durability and ease of use, the Level TROLL NC pairs with our robust mounting accessory option with a built-in leveling tool, ensuring fast and precise installation. It is compatible with VuLink and TROLL Com Plus for streamlined remote data access.

Note: The Level TROLL NC requires sufficient power to collect data. It can be powered using a TROLL Com Plus or paired with VuLink telemetry (Lithium batteries only) with a maximum of one instrument connected.

Features

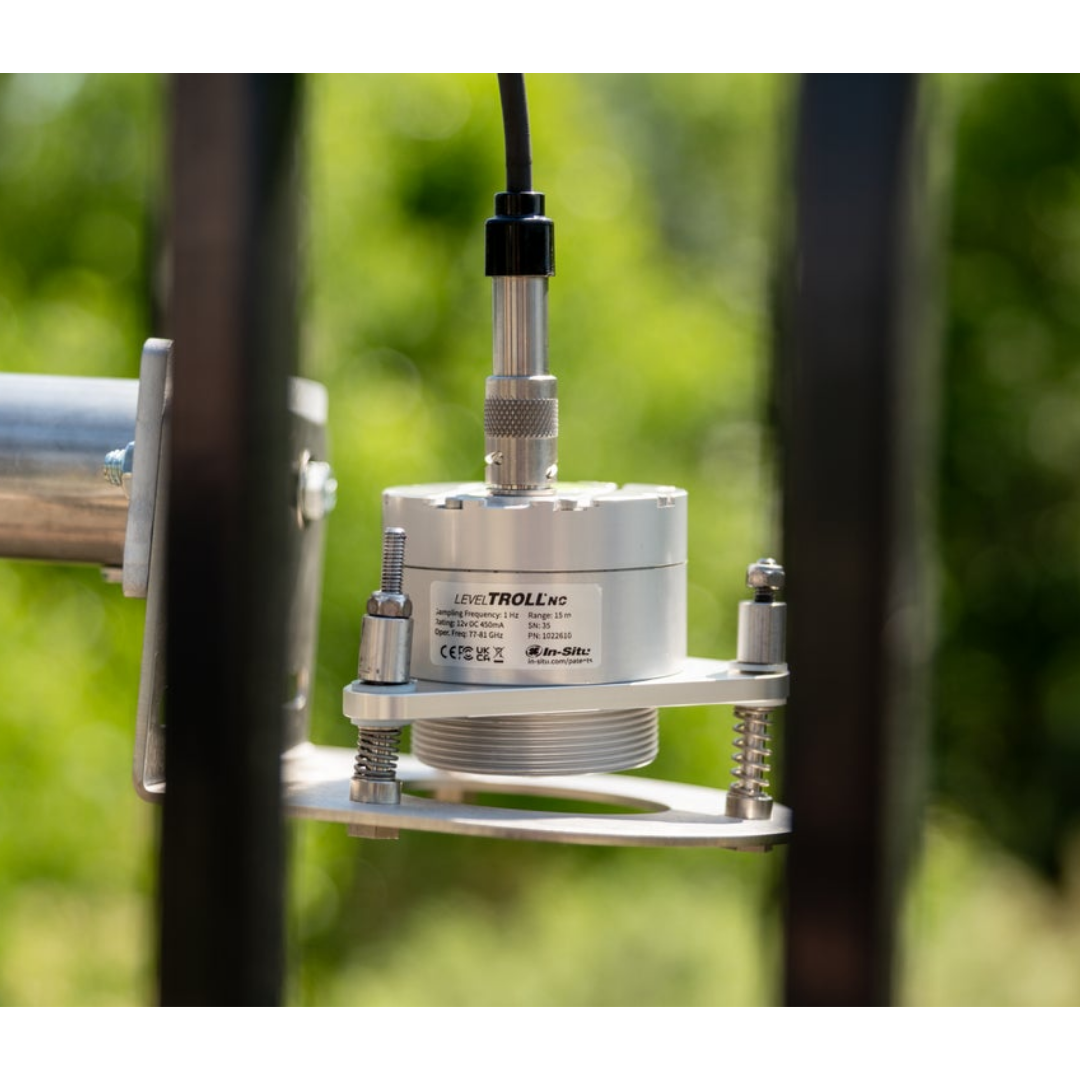

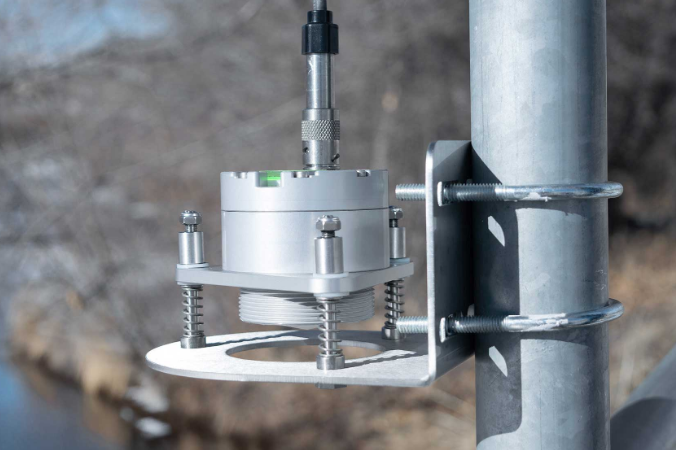

Easy to Deploy

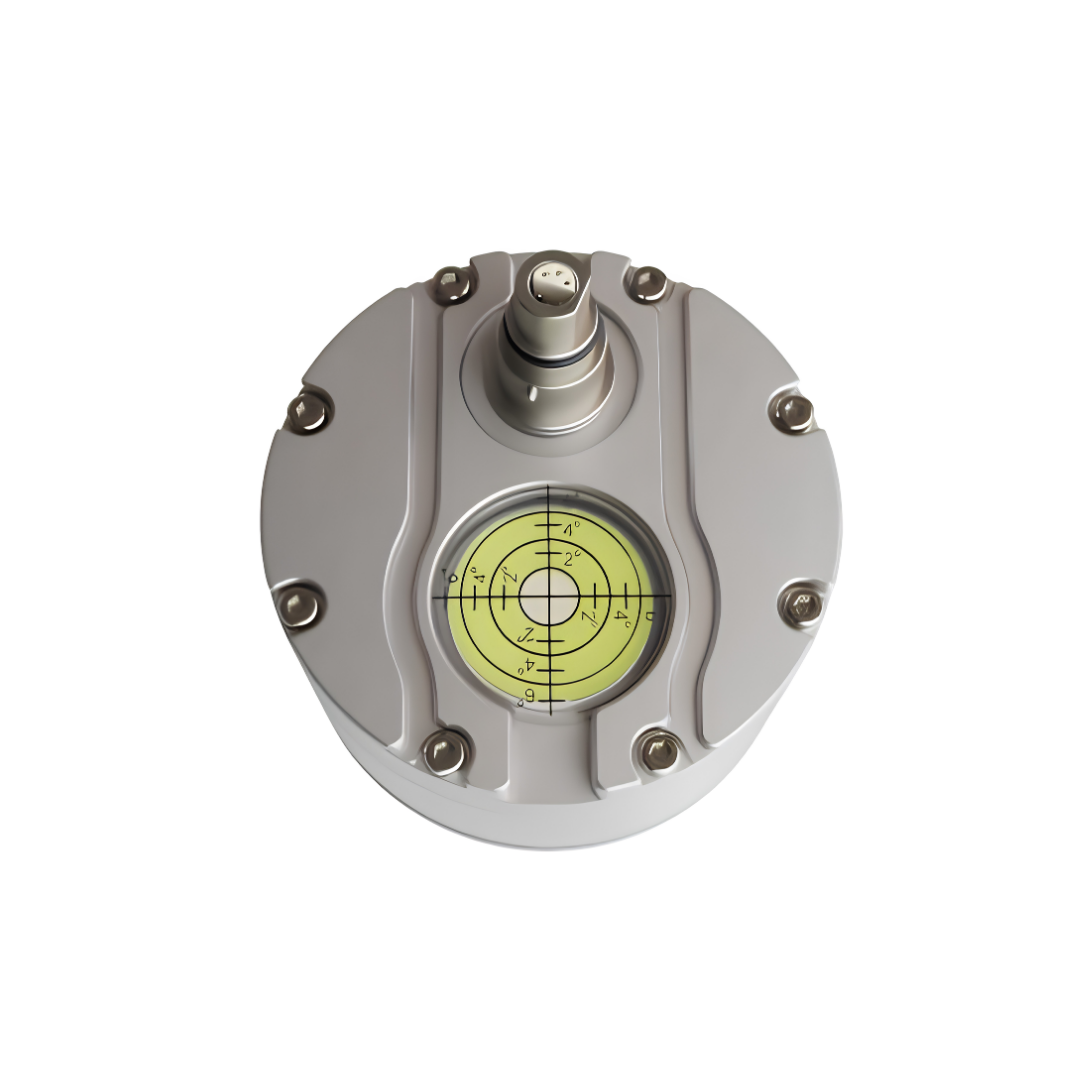

A bubble level and a versatile mounting bracket with integrated leveling bolts and multiple hole configurations support a variety of deployment scenarios.

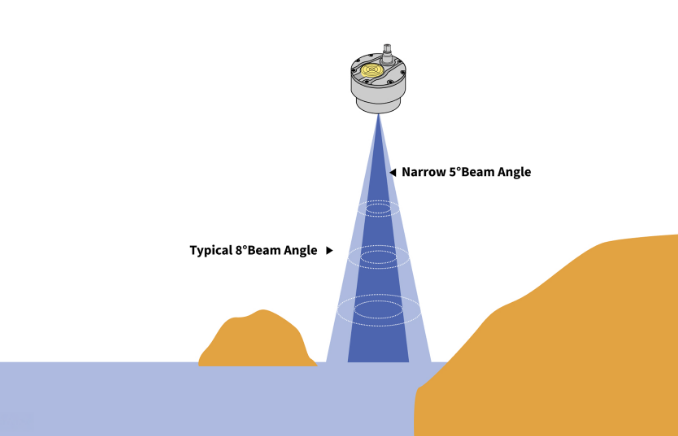

Precision with a Narrow Beam Angle

The sensor’s 5° beam angle only requires a 1 m (2.4 ft) diameter clear zone at 11.5 m (25 ft) range. This narrower beam increases flexibility for installation in tighter spaces.

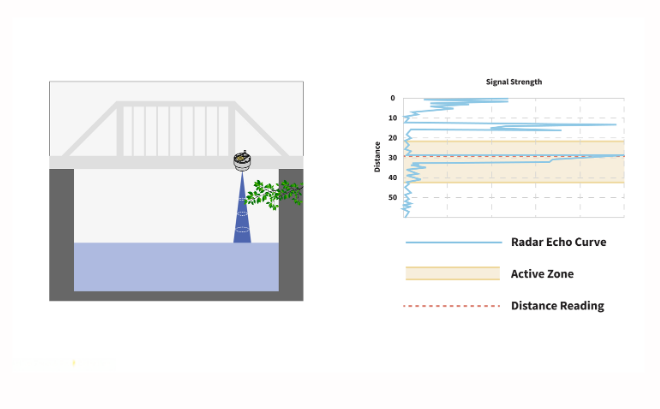

Active Zone & Peak Detection

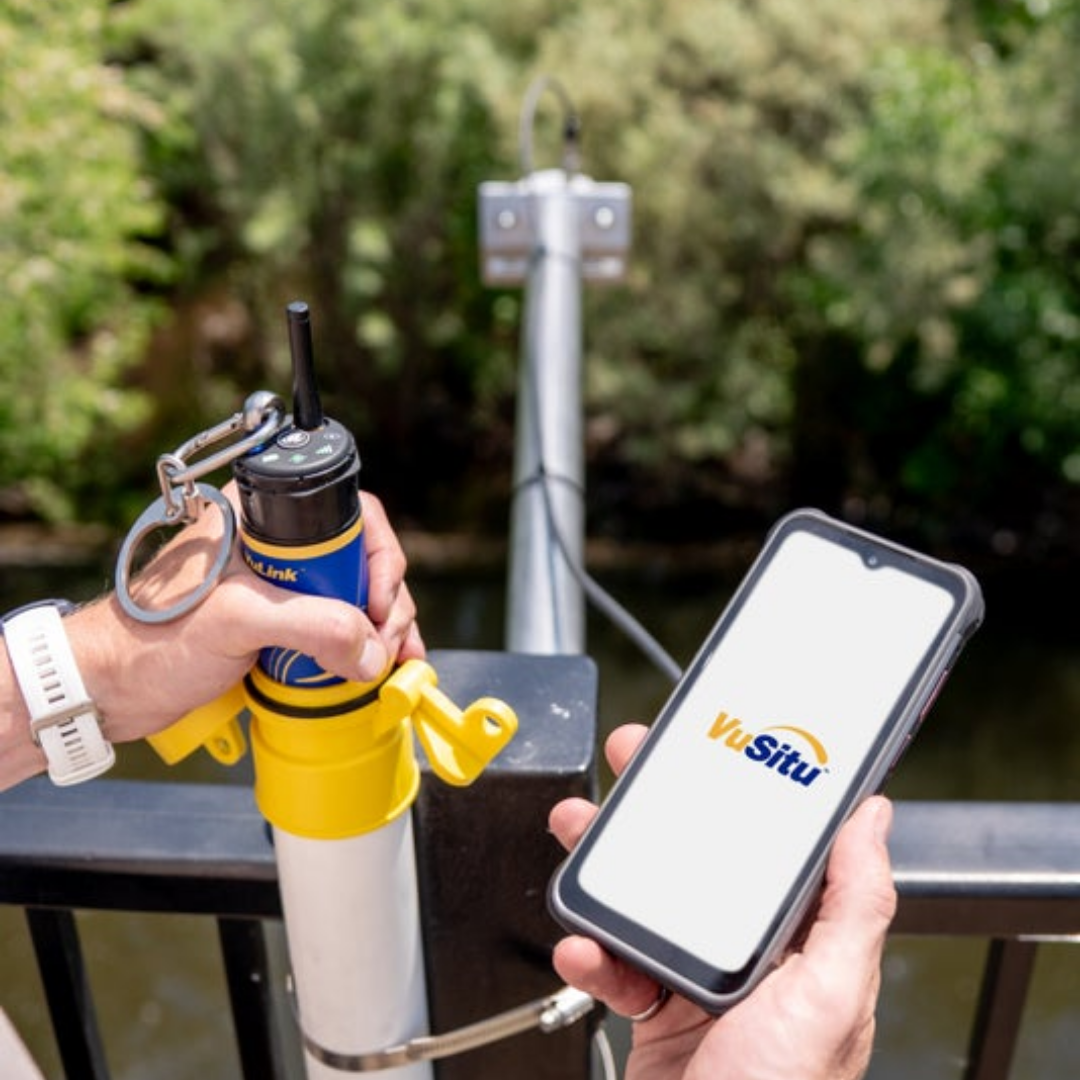

Using the VuSitu app, users can view the echo curve to assess signal return and surface reflection strength. Fine-tune measurements with customizable Active Zone settings or change Peak Detection to enhance signal clarity and detection accuracy.

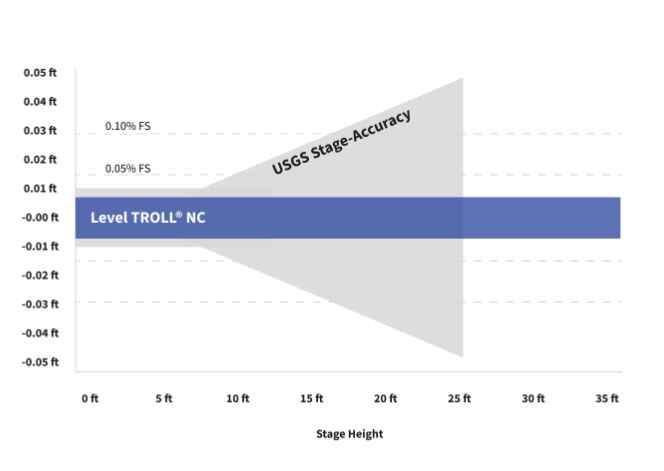

USGS Stage Accuracy

The Level TROLL® NC surpasses USGS surface water specifications,
offering:

• Accuracy: ±0.006 ft (±2 mm) FS
• Resolution: 0.001 ft (0.5 mm)
