OTT EcoLog 1000
SKU: ecolog1000
Ask for Best Price

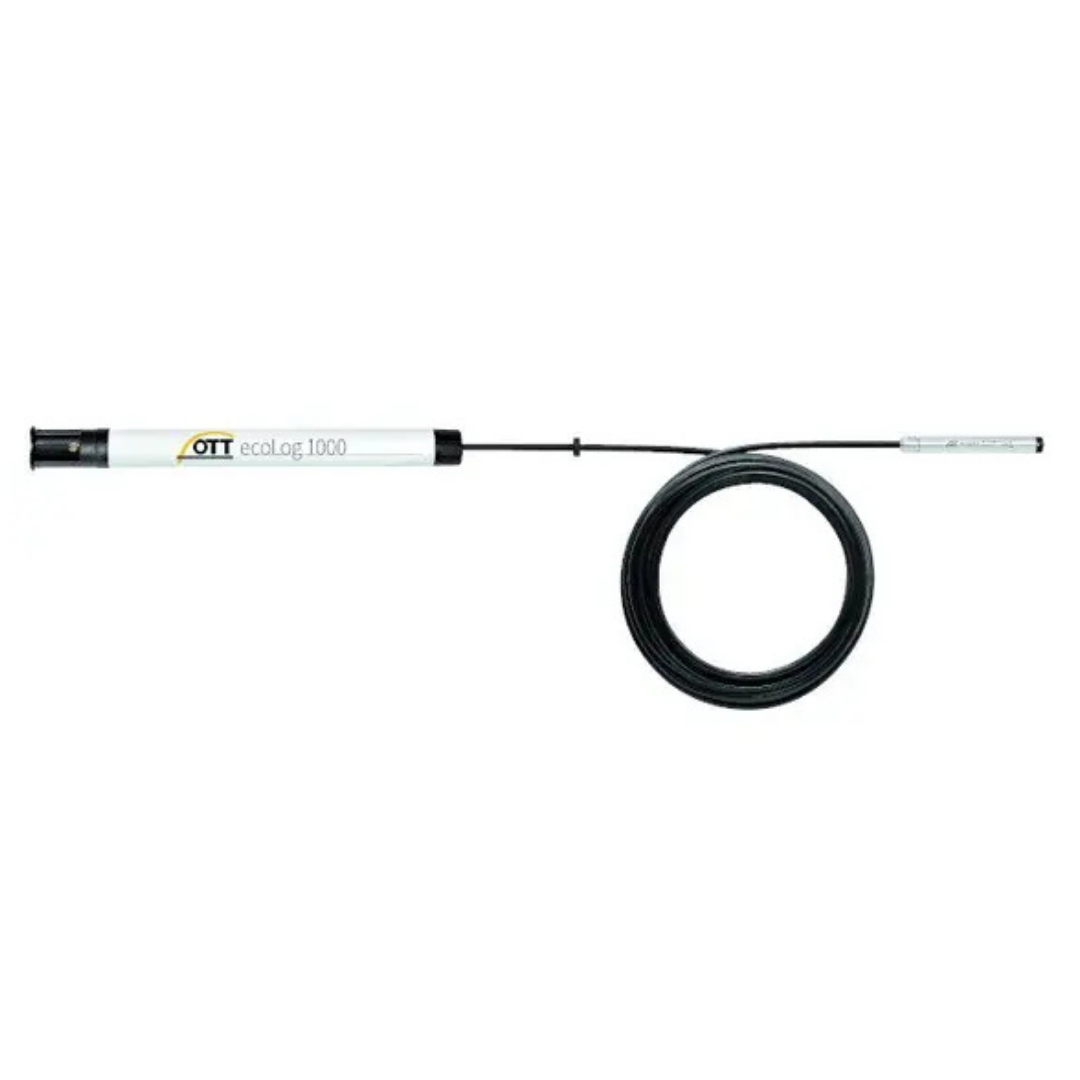

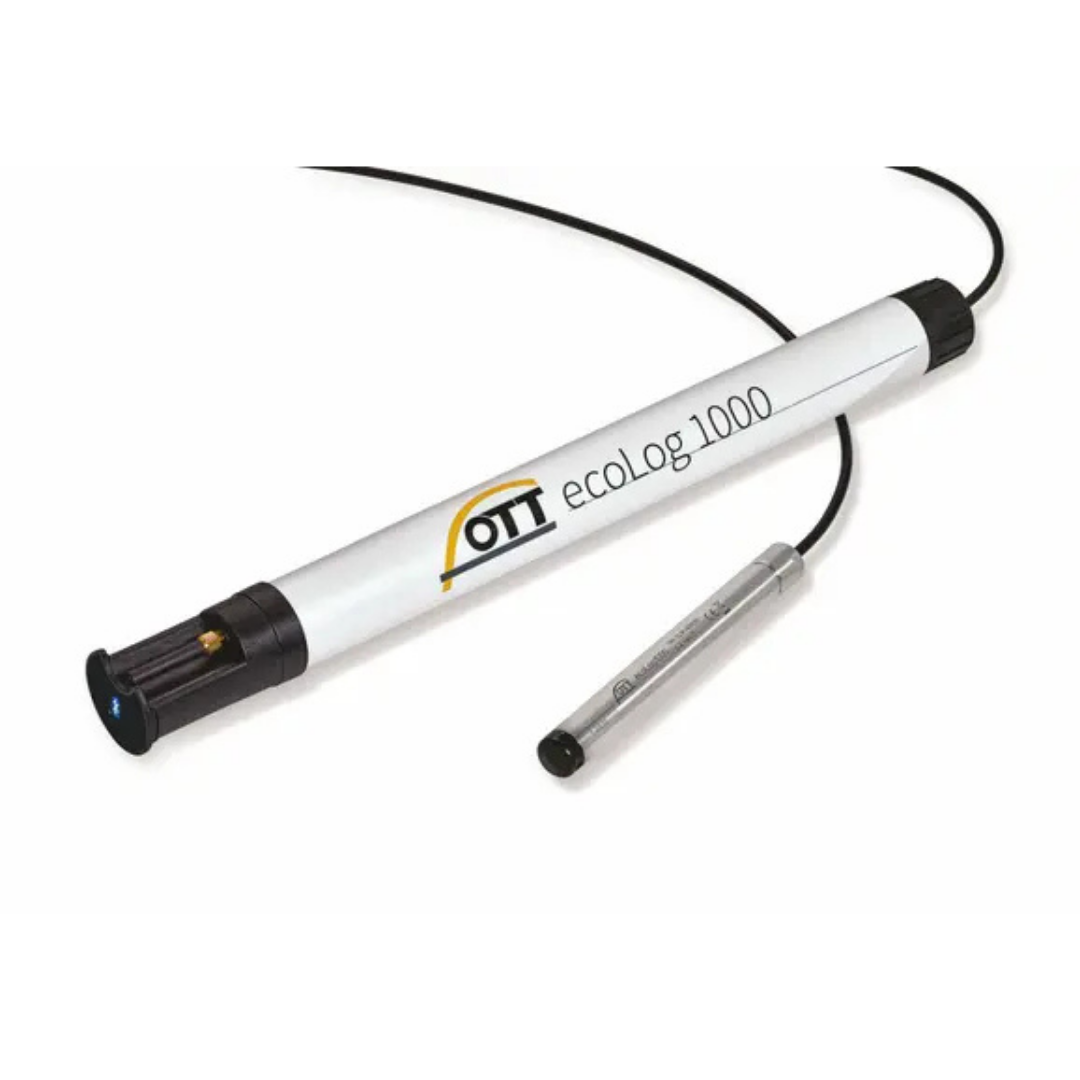

The Ott ecoLog 1000 is a self-contained, robust surface and groundwater level logger for measuring water level, temperature, and conductivity. It provides reliable system up-time and accurate measurements while avoiding data gaps. It’s simple to operate using just a smart phone or PC via integrated Bluetooth Low Energy (BLE) – no additional tools for maintenance or battery replacement. It supports smart phones, tablets, and PCs operating with Android, iOS, or Windows 10.
An Ott ecoLog 1000 variant is available with an optional conductivity sensor. Monitor water quality conditions at your measuring site to gain awareness of not only your water’s temperature but the chemical make up as well. Easily calibrate the conductivity cell, view measurement data, and perform diagnostics from your mobile device with the LinkComm Operating Software application.
Free local delivery
Manufacturer warranty
Local SG support
Description
Benefits
Save time by managing less equipment
The ecoLog 1000 is an all-in-one instrument with a water level sensor, logger, and modem built-in. It requires no additional tools for maintenance or battery replacement. Installation and maintenance become easy with no need for additional cables or dongles. This minimizes your total cost of ownership and guarantees you won’t spend unnecessary time or energy setting up or relearning your equipment.
Reduce field visits by eliminating data gaps
The ecoLog 1000 has reliable system up-time and accurate measurements in every data transmission. This wealth of continuous data, sent through either HTTP(S), MQTT(S), FTP(S), or SMS keeps you better informed before field visits, so each future visit is faster and more efficient. Additionally, configure and monitor your data completely remotely with cellular communication.
Connect with variety of devices/software

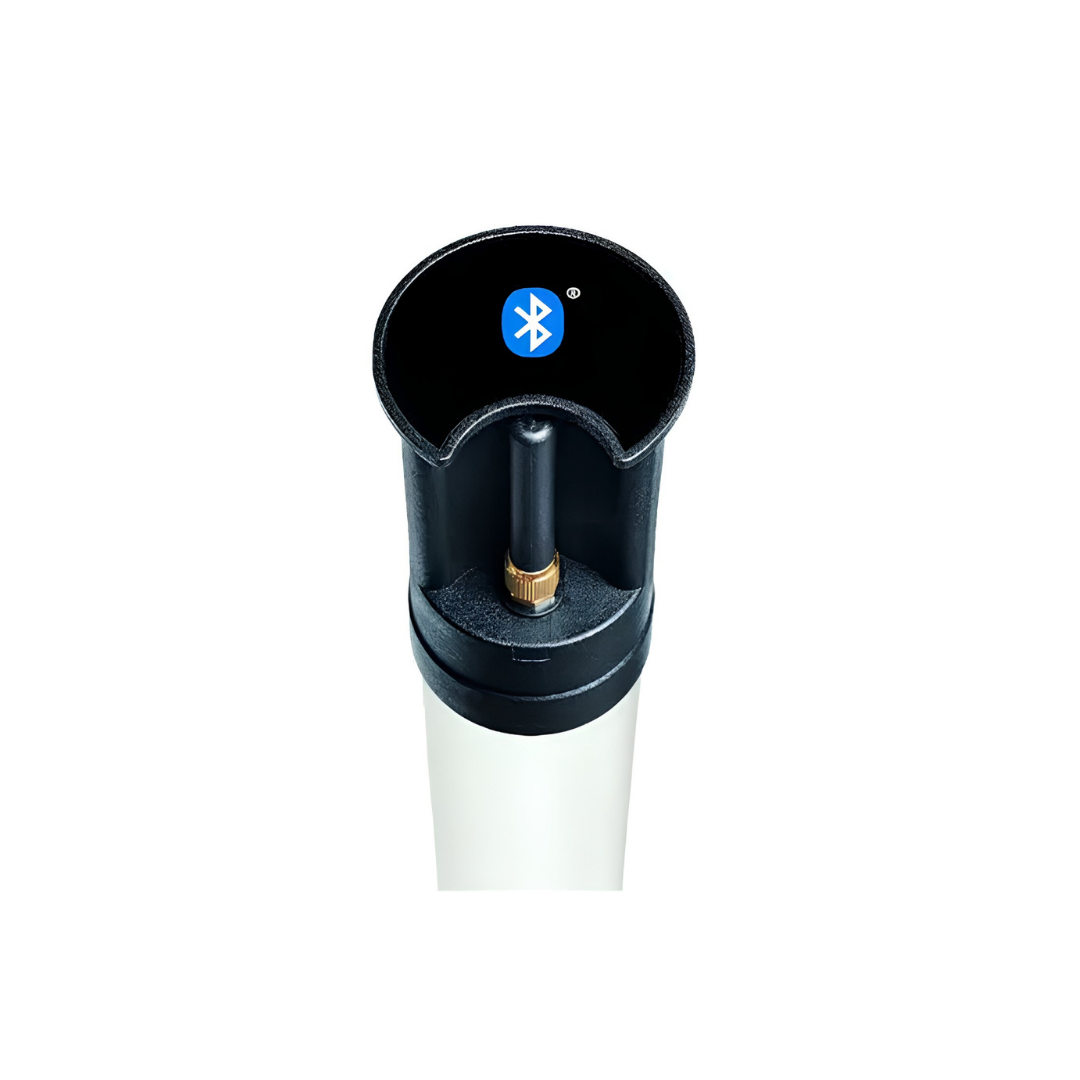

The logger is simple to operate using just a smart phone or PC via integrated Bluetooth Low Energy (BLE). It integrates with LinkComm software which allows for remote configuration and diagnostics of your station.
Monitor basic water quality parameters
Gain a better understanding of water quality at your site by measuring temperature and conductivity with a rugged and accurate, 4-electrode conductivity measuring cell. This addition enables conductivity derived parameters such as Total Dissolved Solids (TDS) and salinity.
Technical Attributes
| Stability | Long-term stability (linearity + hysteresis): ± 0.1 %/a full scale |
| Dimensions (free text) | Logger unit: LxD: 20.7 x 2.0 inch (525 x 50 mm (2″)) Pressure probe: LxD: 7.7 x 0.9 inch (195 x 22 mm (1″)) System length: 0 … 656 ft ( 656 ft on request) (0 … 200 m ( 200 m on request)) |
| Antenna | Verizon: SMA connector with Penta Band Stubby Antenna |
| Storage Interval | 5 s – 24 h |
| Environmental conditions: temperature | Operating: -22 °F … +185 °F (-30 °C … +85 °C) Storage: -40 °F … +185 °F (-40 °C … +85 °C) |
| Memory | 28 MB |
| Accuracy | ±0.05 % FS (linearity and hysteresis) |
| Regulatory | FCC / IC / CE PTCRB: According to NAPRD03 |
| Conductivity | No |
| Number of Measured Values | Up to 1,000,000 values |
| Resolution | 0.01 ft / 0.1 inch / 0.001 psi (0.001 m / 0.1 cm / 0.0001 bar) |
| Data output interval | 1 min … 1/week, 15 min … 1/week for SMS |
| Pressure Sensor/Range | Ceramic / temperature compensated |
| Clock Accuracy | ± 26 s / month (at 77 °F) / ± 3 s using SNTP |
| Temperature resolution | 0.02 °F (0.01 °C) |
| IP Rating | Logger Unit: IP67 (flood-proof up to 1 week / 1 m water column) Pressure Probe: IP68 |
| Measurement Range | 0 – 20 m (0 – 66 ft) |
| Protocol | FTP, FTPS, HTTP, HTTPS (TLS 1.2), MQTT, MQTTS |
| Communication | Bluetooth Low Energy (BLE) 5.0 – up to 10 m (free line of sight) |
| Weight EU | Logger unit incl. battery pack: ~ 31.7 oz (~ 900 g) Pressure probe: ~ 23.6 oz (~ 670 g) Pressure probe cable: ~ 1.48 oz/m (~ 42 g/m) |
| Material enclosures | Pressure probe housing: Stainless steel 1.4539 (904L) Logger housing: Aluminum / POM Cable jacket: PUR |
| Battery Life | 10 years @ average temperature of 20 °C/68 °F, 1 hour sampling and 1 transmission per day ( 5 years with conductivity variant) |
| Temperature Accuracy | ±0.2 °F (±0.1 °C) |
| Humidity | 5% … 95 % (non-condensing) |
| Power supply | 3.6 V / 26 Ah – Lithium power pack with connector |
| Certifications | Verizon Open Development Certification, AT&T IoT Device Certification |
| Temperature range | -13 – +158 °F (-25 – +70 °C) |
| Interface | Cellular network LTE-M (Cat-M1): B1, B2, B3, B4, B5, B8, B9, B10, B12, B13, B17, B18, B19, B20, B25, B26, B27, B28, B66 |
