Andel FlowStop® 2
SKU: FlowStop-2
Ask for Best Price
FlowStop® 2 protects against the costly consequences of water damage from internal leaks and floods.
UK insurers pay out around £1.8 million every day to customers making escape of water (EOW) claims on their buildings and home contents insurance. Nearly one in five claims is for damage caused by leaks with many in the winter months due to frozen pipes that have burst.
Source: Association of British Insurers
Free local delivery
Manufacturer warranty
Local SG support
Description
Sustainable, cost-effective and NSF REG4 approved , Andel FlowStop® 2 automatically isolates your water supply in the event of abnormal flow activity or the risk of freezing pipes. FlowStop® 2 can be installed in new builds and retrofitted into existing and occupied buildings.

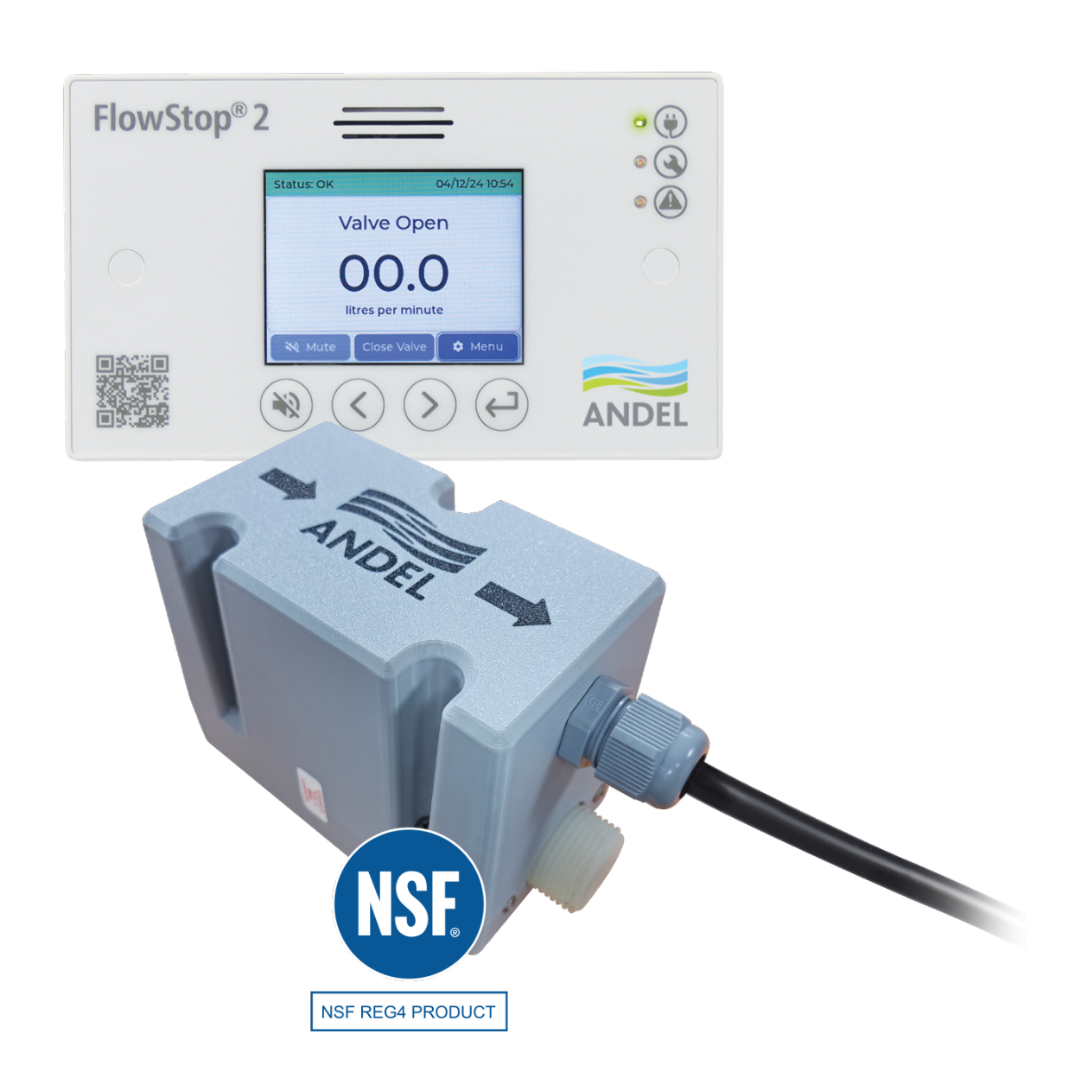

FlowStop® consists of a control unit and a valve unit, which includes an integrated latching solenoid valve and a flow rate sensor. It actively monitors the water supply to a property, helping to detect and prevent leaks.
FlowStop® 2 is available for large-scale supply and can be installed by Andel or a chosen installer, with full technical support provided.
Benefits at a glance
- Highly cost-effective
- Low maintenance
- Easy to install, easy set-up
- Monitors up to two water supplies
- Freeze protection (user adjustable)
- Time-out protection (user adjustable)
- Excess flow protection (user adjustable)
- 24-hour non-use protection (user adjustable)
- Override control
- Discreet flush or wall-mounted control unit
- Option to add leak detection sensors
- Optional connection to onward BMS and SMS for absent occupants
- NSF REG4 approved
FlowStop® 2 is ideal for:
- Student accommodation
- Hotels
- Offices
- Residential developments
- Social landlords
- Empty properties
- Private residential
- Any multi-occupancy properties
FlowStop® 2 has four programmable settings for shutting off the water supply and preventing water leaks:
Continuous flow protection: 1 to 120 minutes (user adjustable)
Exessive flow rate protection: 5 to 40 litres per minute (user adjustable)
Low temperature freeze protection: 0ºC to 5ºC (user adjustable)
Non-use protection: 1 to 48 hours (user adjustable)
When a property is empty
FlowStop® 2 isolates the water supply if no water is used for a pre-set period set by the user, automatically covering for periods when a property is temporarily vacated. This is useful for preventing leaks in empty properties going unchecked with potentially serious consequences.
Option to add leak detection sensors
There is also an option to add water leak detection sensors such as Andel’s FlexiPad, leak detection cable and tape for more localised monitoring in critical areas such as kitchens, utility rooms, bathrooms, showers and WCs.
Mute and reset
When the system goes into alarm, audible alarms can be silenced by pressing the mute button. When the problem has been checked and resolved, the system can be reset by holding the mute button for three seconds and the water supply will start to flow again.
FlowStop® 2 features and functions
Valve Unit
- Time-out continuous flow protection: Shuts off the water supply if water has been running for more than 1-120 minutes (user adjustable).
- Excessive flow rate protection: Shuts off the water supply if there is an abnormal flow of water between 5 and 40 litres per minute (user adjustable).
- Low temperature freeze protection: Shuts off the water supply if the temperature falls between 0 and 5ºC (user adjustable).
- Non-use protection: Isolates the water supply if no water has been used for 1-48 hours (user adjustable).
Control Unit:
- Faceplate: Discreet double-gang faceplate featuring backlit 2-digit LCD display, Status LED light and 4 navigation buttons for easy set-up. Can be surface mounted or flush mounted using a standard back box.
- Reset button: Mute button resets the system following activation and allows water to flow again when the problem has been resolved.
- Override feature: Turns flow monitoring off to allow for prolonged water use such as watering the garden.
- Optional leak detection sensors: Can be added to detect water leaks in vulnerable areas such as in kitchens under sinks, washing machines and dishwashers, bathrooms and WCs.
- Power supply: Mains power 110-240Vac
- Output: Volt-free relay contact rated 30V @1A per input.
Maintenance
The system performs an automatic solenoid exercise to avoid the build up of limescale. A yearly inspection is recommended by a qualified engineer to ensure the correct operation of the system.
