Andel FloodWall

Benefits at a glance

• Cost-effective compared to traditional flood defence systems
• A modular system designed for easy transportation and speedy on-site assembly
• Suitable for both new build and retrofit installations, both residential and commercial
• Soil analysis and hydrological modelling incorporated as part of the design process
• Panels and posts are constructed from nonporous, durable, 100% post-consumer recycled plastic waste
• Environmentally friendly, reducing your carbon footprint compared to an all-concrete construction
• Aesthetically sympathetic with a wood-effect finish
• Steel reinforced posts for a robust installation

Built to resist the weight of floodwater

Andel FloodWall has been designed to withstand the full force of floodwater in the severest of flood events.

Water resilient installation

In a flood event, the greatest force is exerted where the flood defence meets the ground. Special care and development has been undertaken to ensure that FloodWall will withstand the full force of floodwater in a flood event.

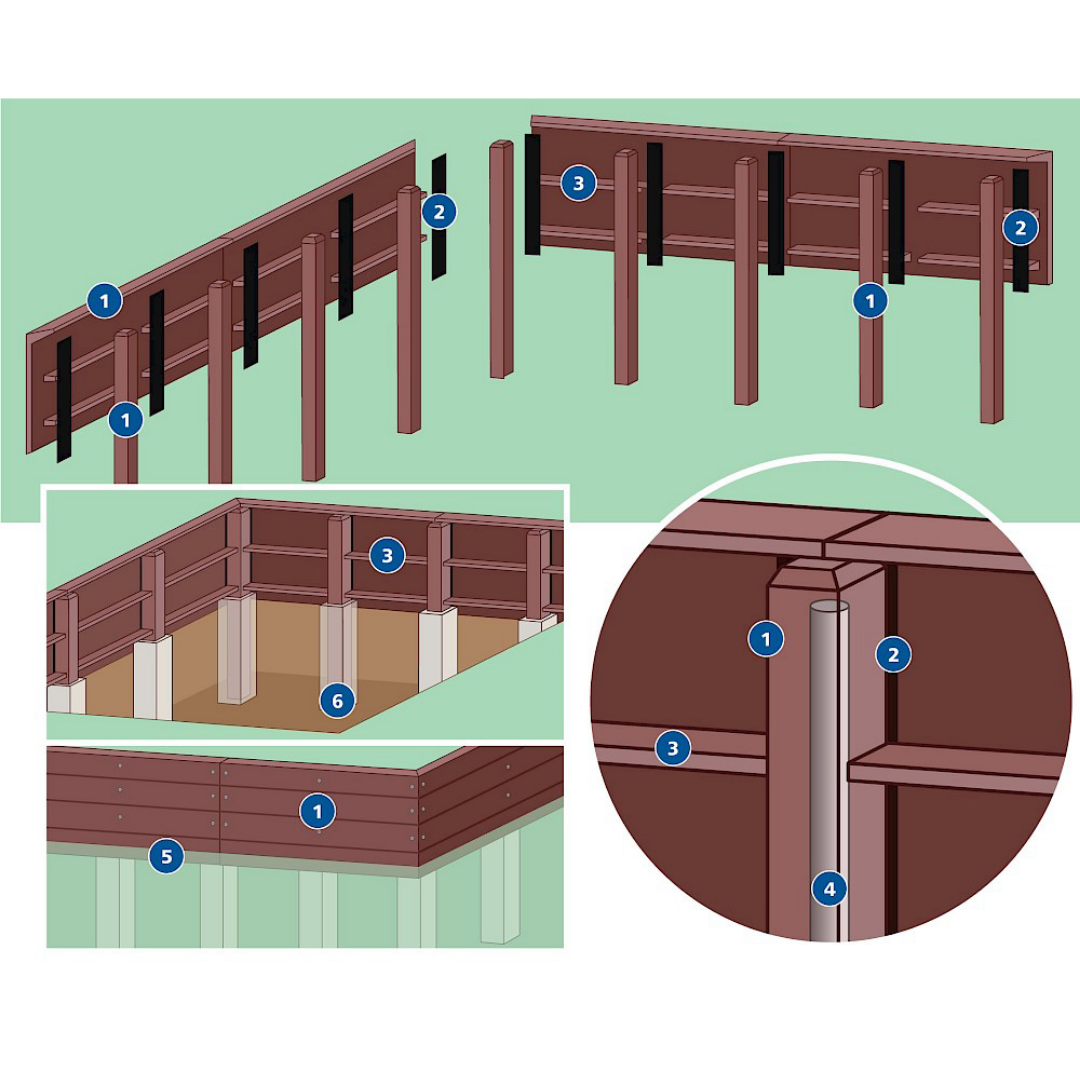

Steel-pipe reinforced posts are fitted deep into the ground to the same height as the wall, into a concrete foundation, providing a level of strength that will resist the full weight of floodwater in the severest of floods.

FloodWall can be installed on soft ground or onto an existing, suitable hard surface. Posts are set into a concrete foundation providing a robust and effective weight-bearing structure. Panels are secured to the posts with self-tapping screws, compressing the waterproof gasket and set into the ground by 100mm to create a water seal.

Optimised design and installation through ground science

Through an ongoing R&D partnership with Leeds University and the UK Government’s Knowledge Transfer Partnerships (KTP) programme, Andel has integrated advanced geotechnical and hydrological analysis into the overall design and insatllation process for its FloodWall system at any given site.

Using detailed assessments of site-specific soil characteristics, Andel models how water moves through and beneath the ground over time. This enables engineers to understand sub-surface water behaviour, including underground seepage, and to design a tailored FloodWall system that delivers maximum flood resistance and long-term performance for each unique location.

By applying sophisticated tools such as GeoStudio^®, Andel’s engineers can simulate soil water flow and analyse seepage patterns beneath the barrier. This data-driven approach determines how quickly and effectively each installation will resist floodwater, ensuring every FloodWall defence system is optimised for the specific ground conditions it protects and determines whether additional measures are required such as flood pumps to deal with the seepage.

Panel size and height of defences

The height of the flood defence is calculated based on a flood risk assessment. Panels are available in two sizes:  60cm high x 192cm wide or 80cm high x 192cm wide

If the defences need to exceed the maximum standard panel height, panels can be doubled up to give extra height to a maximum of 1.2 metres. The added panels are sealed with a watertight gasket and additional supports are added to ensure the defence meets the correct requirements.
