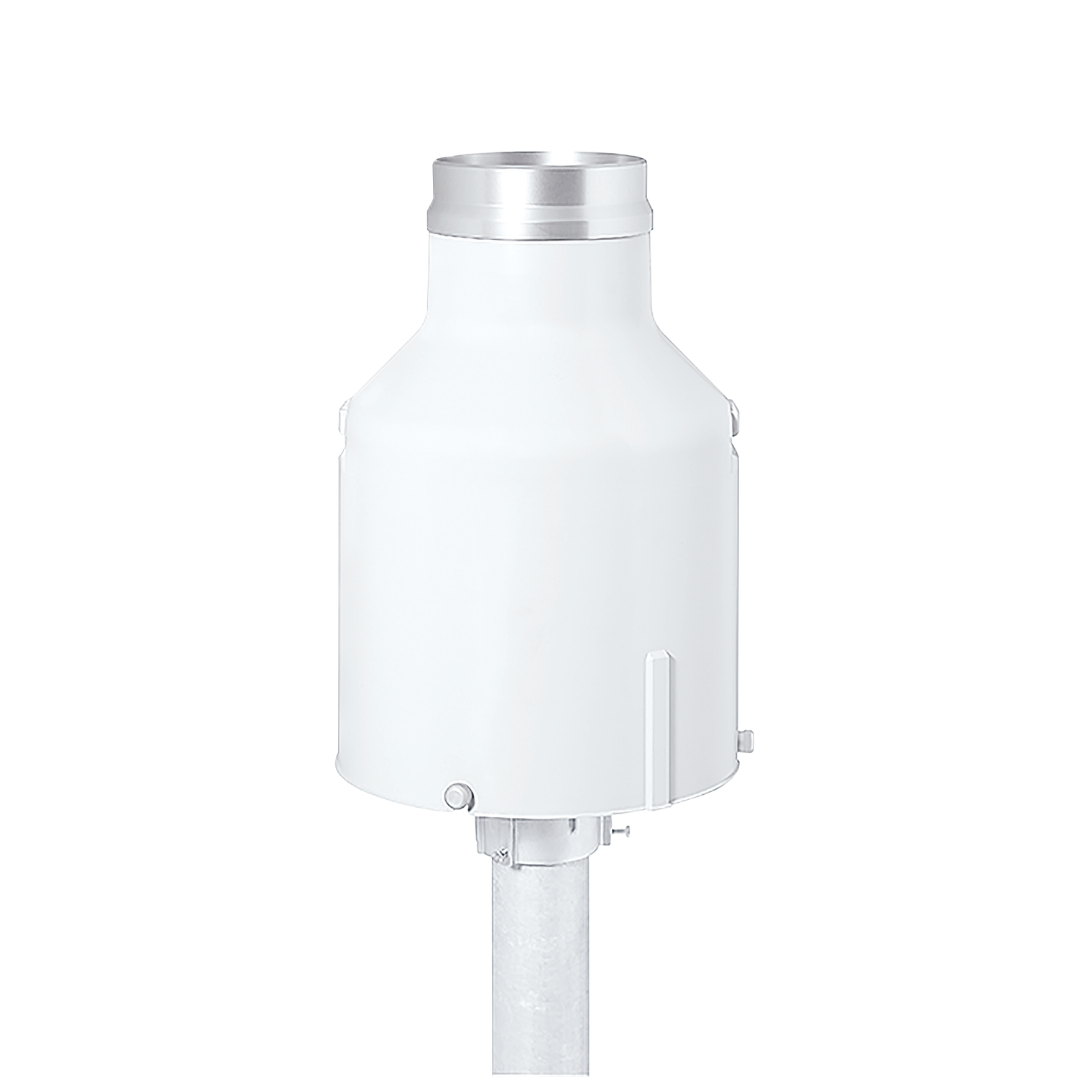

OTT Pluvio² L 400 Weighing Rain Gauge, 400 cm²/750 mm
SKU: Pluvio Rain Gauge
Ask for Best Price
OTT Pluvio² Weighing Rain Gauge is a high‑precision precipitation sensor delivering accurate measurement of rain, snow, hail, and precipitation intensity.
Free local delivery
Manufacturer warranty
Local SG support
Description
The Ott Pluvio² L is an all-weather precipitation gauge that uses superior weight-based technology to measure the amount and intensity of rain, snow, and hail. Developed in conjunction with industry-leading meteorological services, the Ott Pluvio² L employs a high-precision load cell and algorithms that compensate for wind, temperature, and evaporation, ensuring the highest accuracy precipitation measurements over time.
Benefits
USB port and instrument services
Embedded USB port to provide direct connection via PC/Laptop for configuration, monitoring, firmware update and guided accuracy test through Pluvio² operating program.
Life time factory calibration over entire operating temperature range and highest reliability
Individually calibrated and hermetically sealed load cell in entire temperature operating range with factory acceptance test report to achieve MTBF of 100 years.
All-weather collecting weighing precipitation gage according to WMO No.8
Direct physical weight measurement of collected solid and liquid precipitation to provide various processed precipitation data such as intensity, amount and bucket content in mm and inch unit.
Low total costs of ownership
Virtual maintenance free instrument to result in scheduled maintenance and calibration to minimize site visits of 1 to 2 per year and lower total costs of ownership. Pluvio² L 400 is suitable for high mountain applications at remote sites without mains supply.
Intelligent and efficient rim heater modes
4 heater modes such as constant rim heater temperature, time controlled according NWS, solid precipitation controlled and temperature range controlled to allow mains, solar power packages or battery operation.
High accurate precipitation data in entire intensity range
High sensitive load cell, high resolution data acquisition and approved algorithm against temperature and wind induced errors to measure from lightest drizzle to tropical heavy rain at high data availability of 99 %.
Technical Attributes
| Measurement Range | 0 – 2 in/min (0 – 50 mm/min) |
| Interface | SDI-12, RS-485, Pulse |
| Intensity Threshold | 0.01 cm/min (0.1 mm/min) |
| Collection Volume | 30 in (750 mm) |
| Collection Area | 62 in² (400 cm²) |
| Accuracy | Amount: ±0.004 in or ±1 % of measured value Intensity: ±0.004 in/min, ±0.24 in/h or ±1 % of measured value |
| Ring Heater | No |
Related products
-

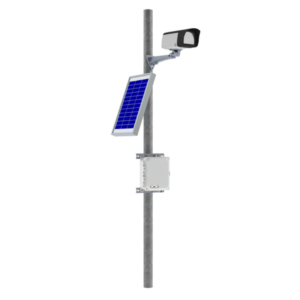

OTT Urban Flood Warning Station
