SKU: HLD Control Panel
Unique, state-of-the-art leak detection and environmental monitoring system, the HLD control panel is a true hybrid, able to accept input alarms and provide detailed data from water, gas and oil leak detection sensors as well as temperature and humidity monitoring sensors simultaneously.
Free local delivery
Manufacturer warranty
Local SG support
Floodline® HLD can monitor from 4 to 128 traditional zones using resistance-based sensors and from 8 to 224 zones using Modbus-enabled sensors – a total zone capacity of 352 zones. A Floodline® zone can be anything from a single point to multiple sensors for all types of leak detection and temperature and humidity monitoring as well as liquid leak detection distance measuring up to 1500 metres.

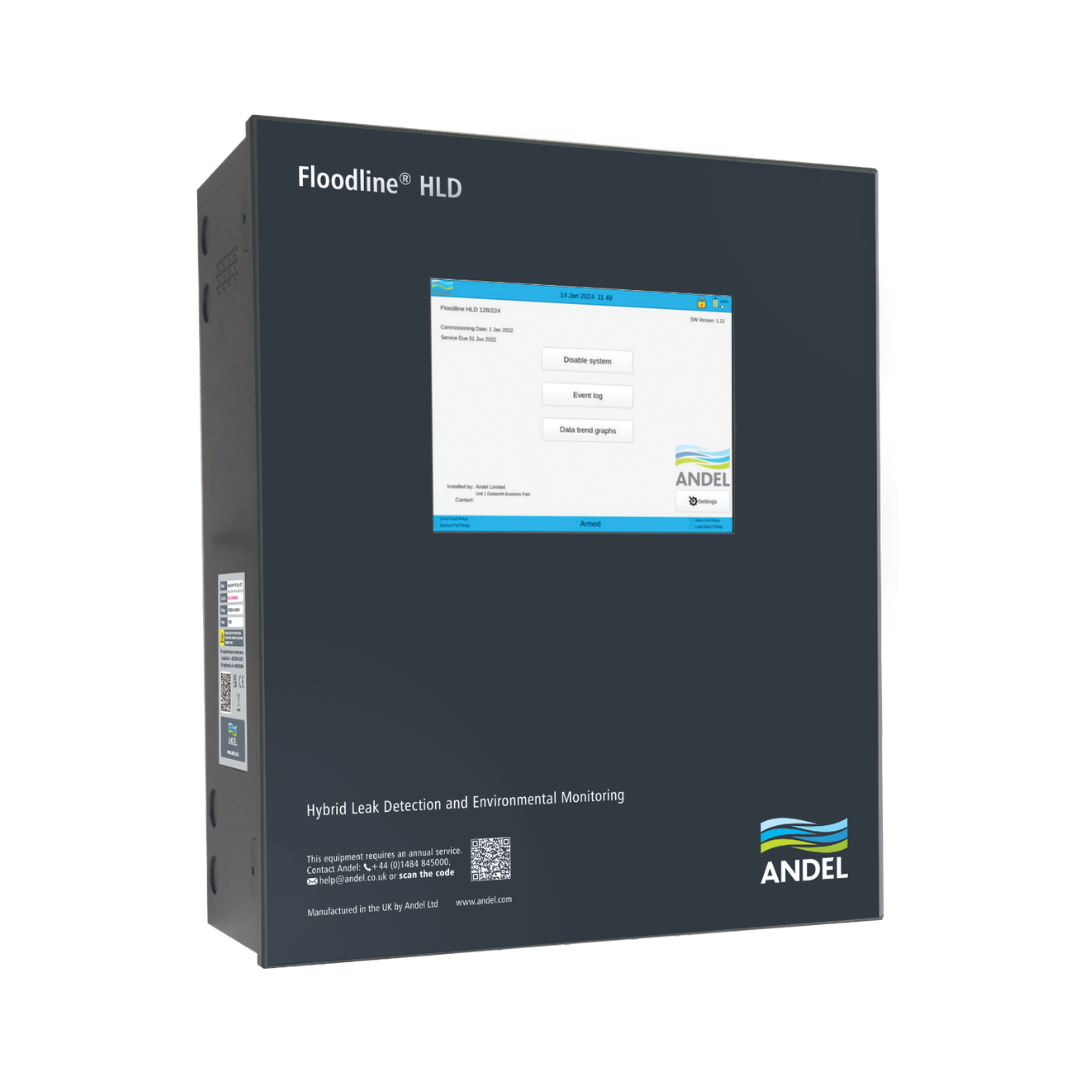

Floodline® HLD is engineered for medium to large sites, operating an entire network of leak detection cables and sensors from a single, wall-mounted control panel. It combines advanced technology with enhanced functionality for both installers and end users.
The large 8-inch (203mm) LED touchscreen provides a complete system overview, including embedded building maps that pinpoint the exact location and type of any alarm activation.
Because each zone is electrically isolated, an alarm or maintenance activity in one zone does not affect monitoring in the others, ensuring uninterrupted protection.
Sensitivity settings for each zone can be fine-tuned via the touchscreen to suit the environment and operating conditions, greatly reducing the risk of false alarms.
The integrated temperature and humidity sensor can be configured with up to four independent alarm thresholds.
HLD provides complete BMS connectivity via Modbus and onward communication capabilities include Modbus, Ethernet, email and SMS.
The system provides simultaneous monitoring and detailed information on the large display screen for water, oil, gas, temperature and humidity sensors. HLD accepts volt-free contact input for connection to third-party sensors and has the capability to monitor other remote site activities such as fuel and oil storage data.
