OTT FMS Flood Monitoring System
SKU: FMS Flood Monitoring System
Ask for Best Price

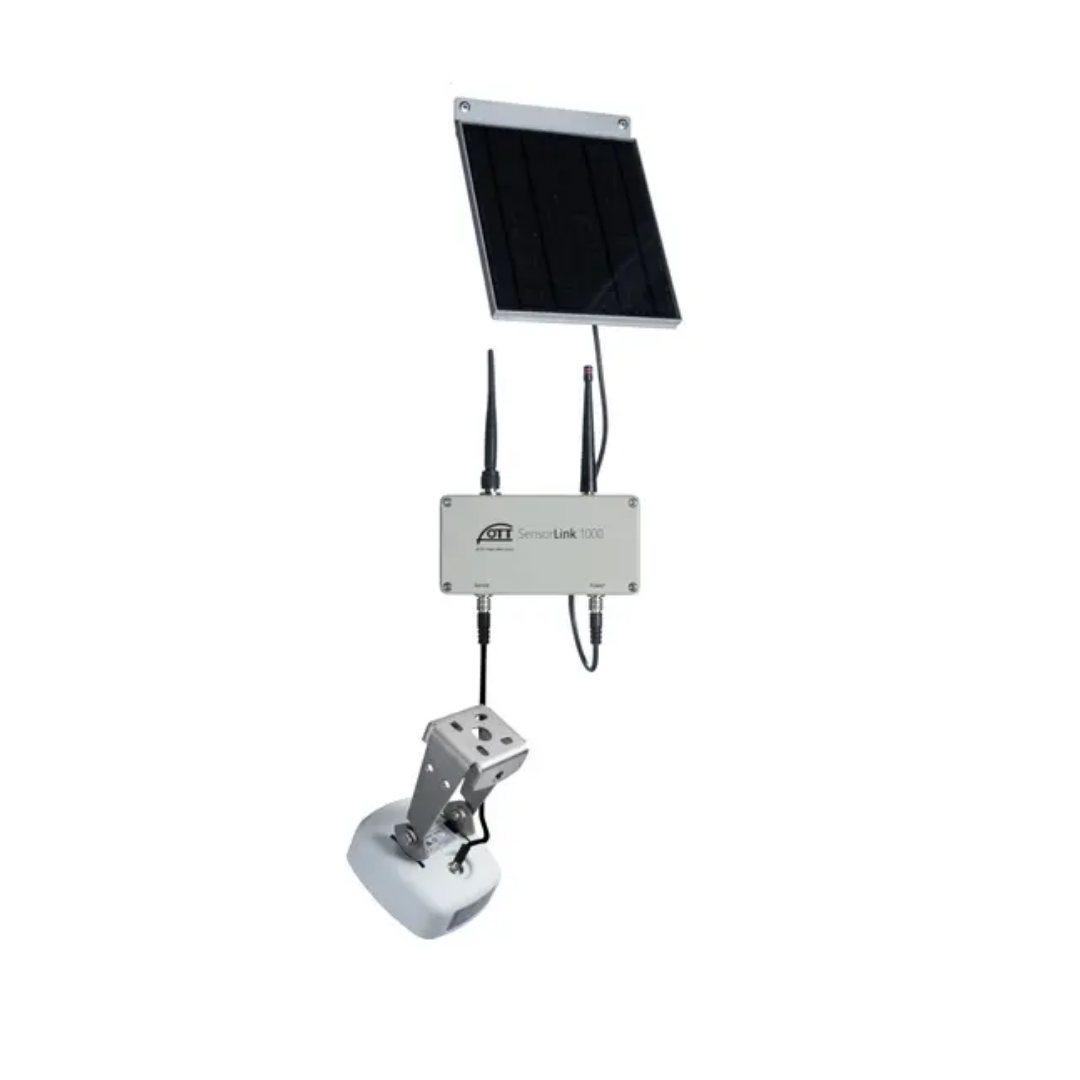

The Ott FMS Flood Monitoring System integrates the Ott SensorLink 1000 IoT device with the next generation Ott RLS 500 radar water level sensor offering reliable, easy-to-install, and low-maintenance water level measurements without the need for extensive technical knowledge.
With Ott HydroMet’s decades of experience and trusted reliability, the Ott FMS ensures accurate and timely data collection from critical monitoring locations, enabling stakeholders to make informed decisions during flood events.
Free local delivery
Manufacturer warranty
Local SG support
Description
Benefits
Efficient Resource Allocation for Swift Response
When minutes matter, timely notifications enable you to take proactive action if water levels exceed a certain threshold, accelerating necessary downstream actions ahead of a flood event.
Reliable and Robust Design for Peace of Mind
Maintain confidence in all weather conditions with the IP67 housing, so you can focus on managing projects without worrying about equipment failure.
Best-in-Class User Experience
Via the integrated Bluetooth (BLE) interface, operation with a smartphone or PC is extremely easy using the LinkComm software. The entire system can be configured from the office using the integrated modem.
Designed for Simple Installation and Use
All-in-one solution with a radar level sensor, datalogger, modem, and power supply. The compact system with customized power supply options, allows you to easily setup a monitoring network with minimal experience.
Technical Attributes
| Telemetry Options | Cellular network LTE-M (Cat-M1) |
| Communication | Bluetooth Low Energy (BLE) 5.0 – up to 10 m (free line of sight) |
| Temperature range | Operation Solar Powered: -22 °F – 140 °F (-30 °C – 60 °C) Operation Battery Powered: -22 °F – 158 °F (-30 °C – +70 °C) Storage: -40 °F – 176 °F (-40 °C – 80 °C) |
| Data output interval | 1 min – 1/week, 15 min – 1/week for SMS |
| Resolution EU | 0.01 ft · 0.1 inch (0.001 m · 0.1 cm) |
| Beam Angle | 8° |
| Measuring Range | 0 – 99 ft (0 – 30 m); distance to water |
| Technology | Radar Technology: 77 – 81 GHz FMCW Radar (W-Band) |
| Cable Length | 7 ft |
| Memory | Measurement memory: 28 MB (Number of stored values approx. 1.000.000) |
| Power supply | Option: Solar Powered Integrated NiMH rechargeable battery including solar panel (with plug connector): + 6 V / 3.3 Ah Solar panel: 5 watts (optional 2 x 5 watts) |
| Material housing text | Radar Housing: Aluminium, ASA (UV-stabilised ABS) Radar Mounting: 1.4301 (V2A) |
| Power input | Solar Powered |
| Protection class | IP 67 (flooding without damage for 1 week / 3.3 ft (1 m) water column) |
| Measurement distance | 5 seconds – 24 hours |
| Value Processing | Mean value over a time period Slope and Offset Daily min/max |
| Level Accuracy | ±0.007 ft (±2 mm) |
| Mounting Style | Pole Mount |
| Material | SensorLink1000 Housing: Aluminium |
| Parameters Measured | Water level / Depth to water Internal relative humidity Sensor orientation |
