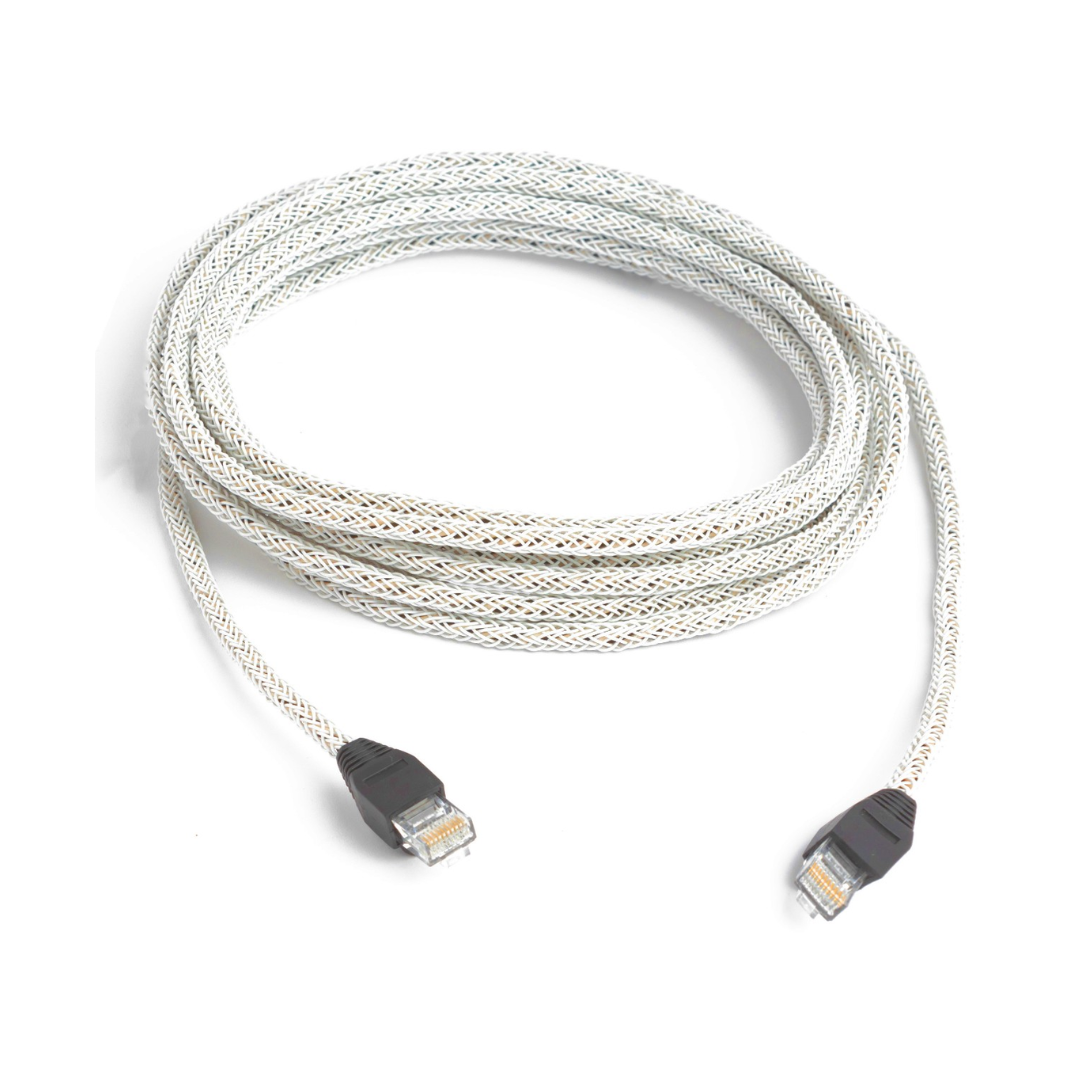

Andel Floodline® 1-Zone Detection Cable
A solution for highly sensitive applications
The unique construction of 1-Zone water sensitive cable has two cores twisted around a central former, covered with a mesh outer braid. 1-Zone water leak detection cable provides a solution for highly sensitive applications, particularly for cable tied directly to the underside of pipework.
The start and end points of the cable are provided by either traditional Floodline® junction boxes or Plug And Play system. The zones can be any length – the typical length is between 5 and 15metres.
The sensor can be wetted and dried any number of times provided the cable is not contaminated with a substance that permanently changes its electrical characteristics. If the contamination is soluble then the cable can be removed, washed (clean water only), dried and returned to use subject to the level of contamination.
Standards tested and met: CPR (Construction Products Regulation) Testing
Under the harmonised European standard EN 50575 this cable has been tested for heat release, smoke production and flame spread in accordance with EN 60332-1-2:2004+A11:2016.
- Description
- Download
Benefits at a glance
- Activates with any conductive liquid at any point along its entire length
- Cable provides a solution for highly sensitive applications, particularly for cable tied directly to the underside of pipework
- The cable can be wet and dried any number of times
- Available in any length to provide as much coverage as required, typically between 5 metres and 15 metres
- Connects to any Floodline® zonal control panel
