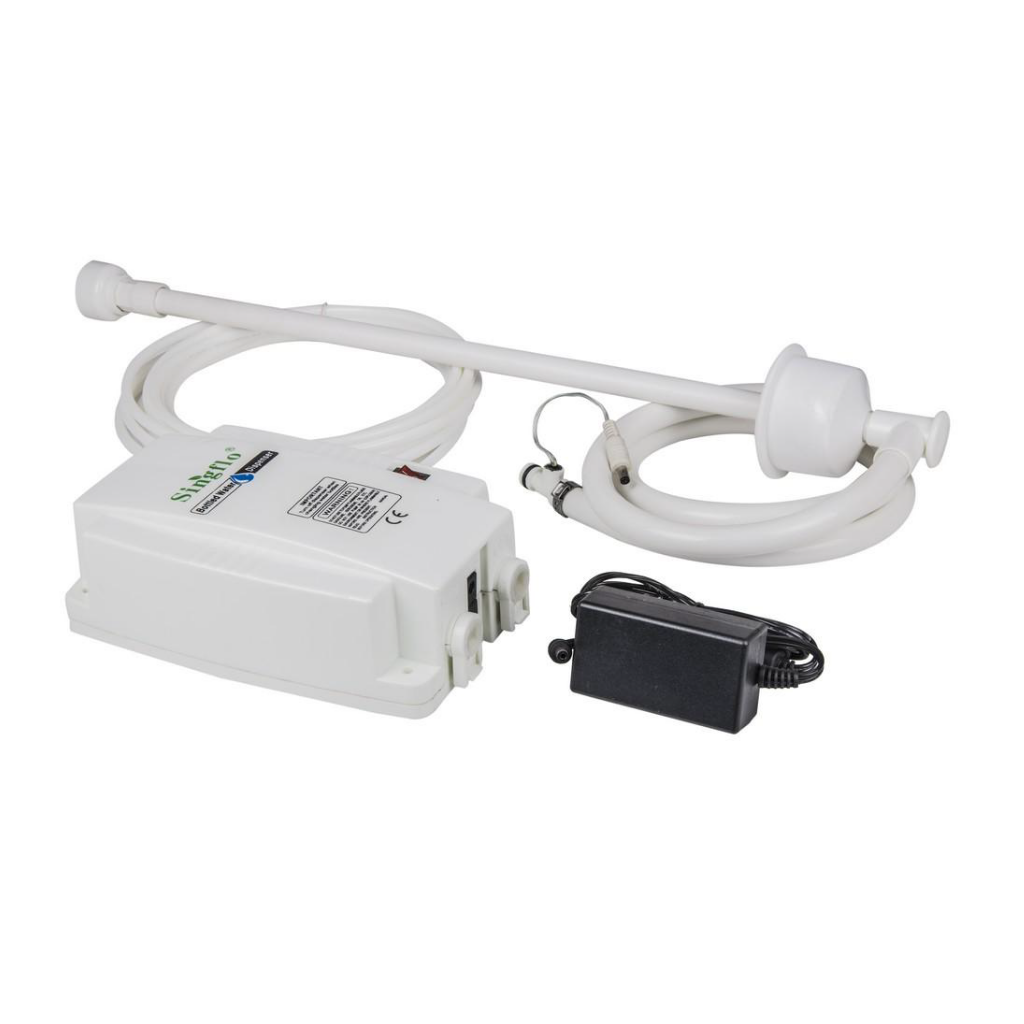

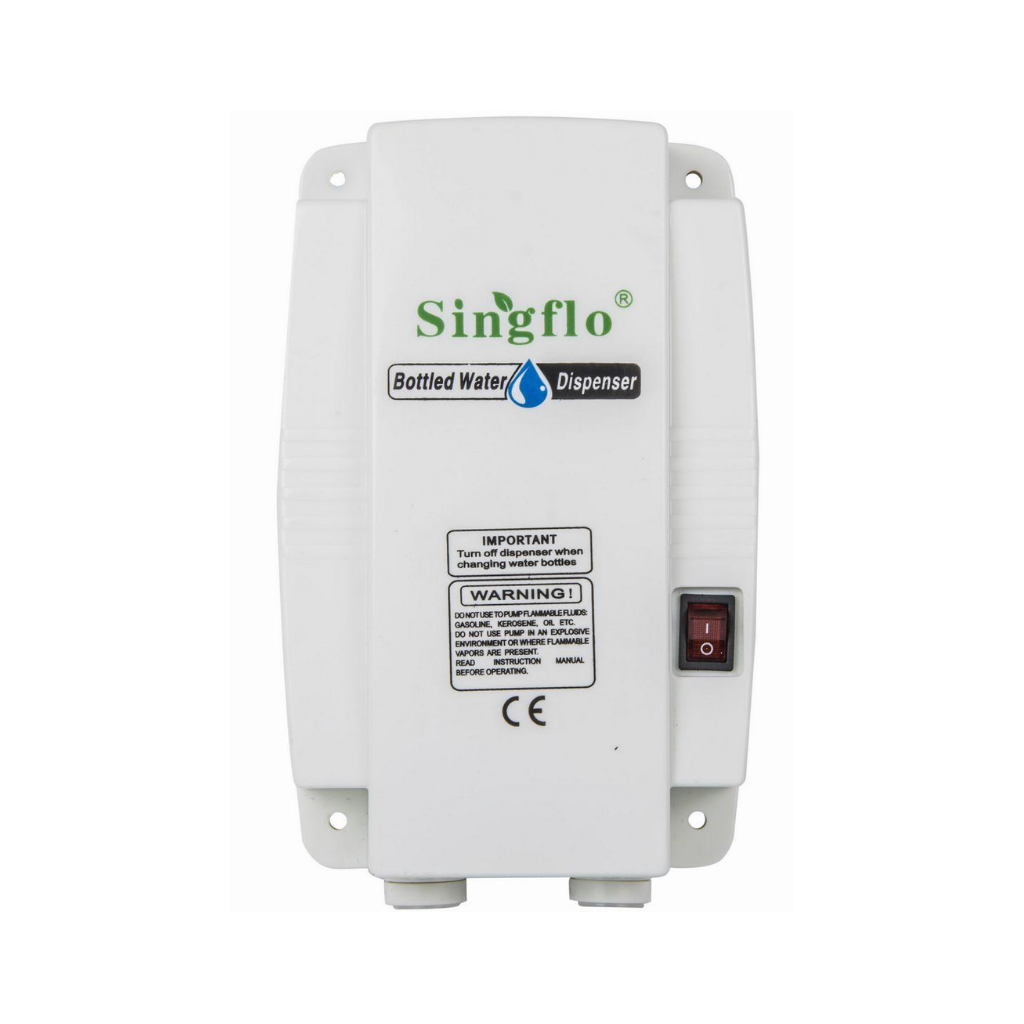

Singflo BW4003A Bottled Water Dispenser
Genuine Singflo bottled water system is ideal where portability is key
Pump recipe-quality water from commercial bottles to ensure better-tasting hot and cold beverages. The new BW4003A Bottled Water System is designed to work with coffee/tea makers, refrigerator ice and water dispensers, espresso carts and portable sinks or any use requiring portable potable water.
The BW4003A Bottled Water System is also designed for convenience. The pump automatically shuts off when the water source is depleted and restarts when water is restored. Its compact size supports easy mounting.
- Description
- Download
Features and Benefits
- New Ergonomic T-Shaped Wand Handle:Allows for ease of installation and removal of wand from bottle
- Universal seal cap fits most water containers
- Compact size for easy mounting
- Long-Life Motor:Ensures years of reliable operation
- Quiet Operation:Minimizes noise pollution with noise-dampening rubber feet
- Singflo Diaphragm Pump: Runs dry without damage, extending pump life
- Quick Connect Port :Speeds installation and replacement of suction and discharge tubing
APPLICATION
Tea/Coffee Machines
Beverage Kiosks
Water Dispensers
Ice Makers
Refrigerators
Anywhere Portable potable water is Needed
Specification
| Max.Pressure | 40PSI (2.76 bar) |
| Dimensions | 2.95''H x 5.12''W x 7.62''D (74.93mmH x 130.05mmW x 193.54mm D) |
| Voltages | 115VAC to 230V AC |
| Flow rate | 1GPM (3.8Lpm) |
| Pressure | 40psi (2.8bar) |
| Amps Draw | 0.5A |
| Cycle | 50/60 Hz for AC models |
| Weight | 5.72lbs.(2.60kg) |
