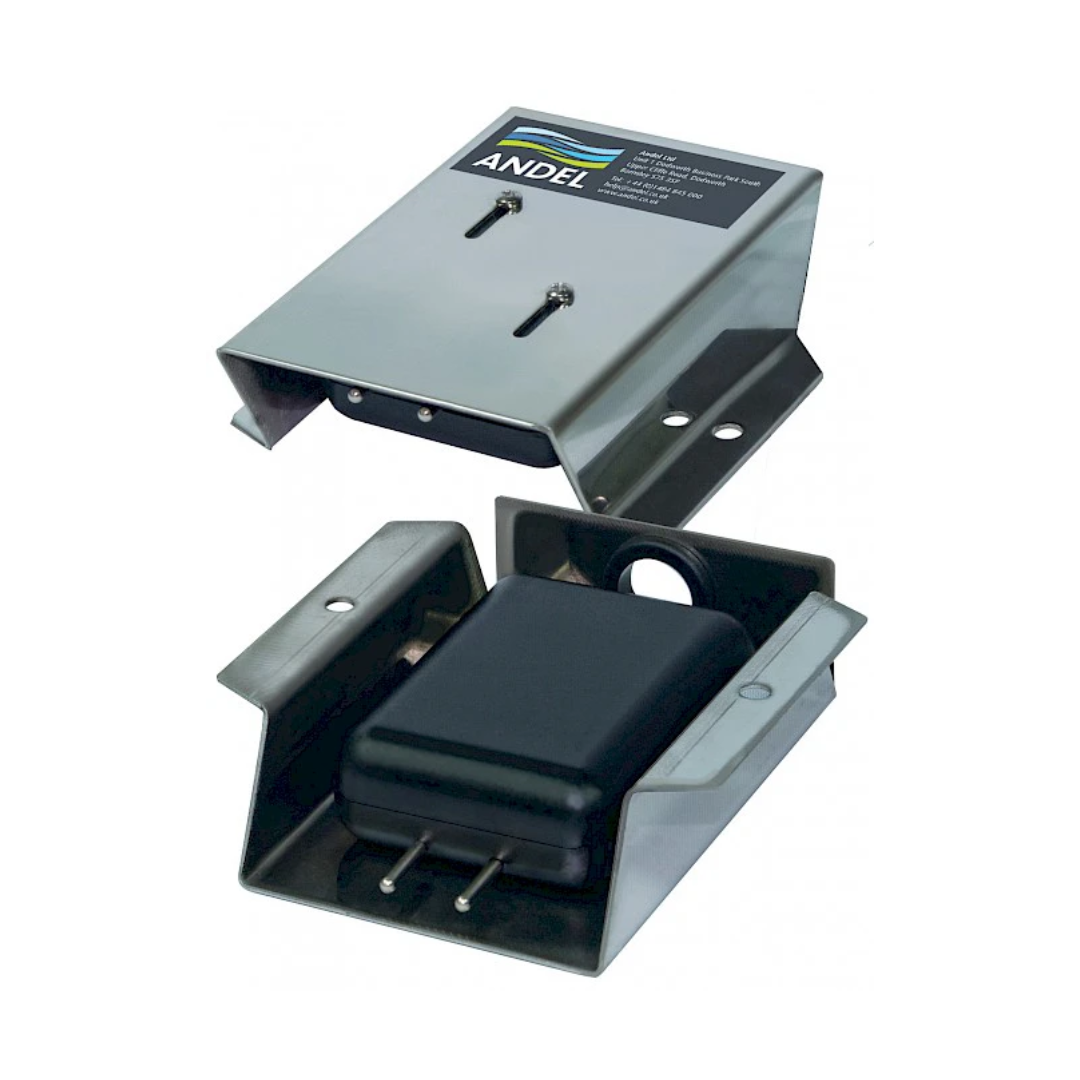

Andel Floodline® Point Sensor (stainless-steel guard plate)
Compact and robust water and conductive liquid leak detector
The Point Sensor is a compact and robust unit with either a vertical or horizontal mounting option. The alarm is activated when water or any conductive liquid comes into contact with the probes.
Supplied with a stainless steel Guard Plate to provide heavy-duty physical protection and for fixing and easy adjustment, Point Sensor is ideal for areas where detection cable could be damaged or where some damp, minor wetting and spillage is expected and not a concern.
Point Sensors can connect in any number and combination with other Floodline® sensors and control panels. Suited to applications such a plant rooms, solid floor areas either free standing or fixed, basements and tunnels, located at the base of walls or apparatus, tanks and sumps.
Point Sensor is a multiple re-use product and can be instantly returned to use after a water leak is cleared. Constructed with a high density plastic body, stainless steel and nickel-plated brass probes and housed in a stainless steel Guard Plate with an IP68 rated encapsulation option for immersion proofing.
Benefits at a glance
- Compact and robust water and conductive liquid leak detector
- Stainless-steel Guard Plate for heavy-duty protection and mounting
- Vertical or horizontal mounting options
- IP68 rated encapsulation option
- Activates when any conductive liquid makes contact across the probes
- Multiple re-use
- Instant return to use after water is cleared up
- The point sensor can be connected in any number and combination with other Floodline® sensors and control panels
- Guard Plate: Height 110 mm x Width 105 mm x Depth 30 mm
Technical data
| Component | Specification | Details |
|---|---|---|
| General | Product Type | Point Leak Detection Sensor with Stainless Steel Guard Plate |
| Compatibility | Can be connected in any number and/or combination with other Floodline® sensors (cables, other point sensors) and Floodline® control panels (1-Zone, Multi-Zone, HLD) | |
| Key Benefits | Robust, compact, easy to install, reusable, provides physical protection | |
| Warranty | 10-year warranty (when subscribed to the Andel Service and Maintenance Plan) | |
| Sensor Unit | Construction | High-density plastic body |
| Probes Material | Stainless steel and/or nickel-plated brass probes | |
| Optional Feature | Encapsulation option for immersion proofing (for use in tanks/sumps with special brackets) | |
| Guard Plate | Material | Heavy-duty stainless steel |
| Function | Provides physical protection for the sensor probes and assists with fixing and adjustment | |
| Dimensions | Sensor Dimensions (H x W x D) | 71mm x 44mm x 25mm (for the sensor body itself) |
| Guard Plate Dimensions (H x W x D) | 110mm x 105mm x 30mm (for the guard plate only) | |
| Fixing | Installation Method | Can be free-standing on a floor or in a drip tray; can be fixed at the base of a wall or apparatus using the guard plate; special bracket required for tank/sump immersion |
