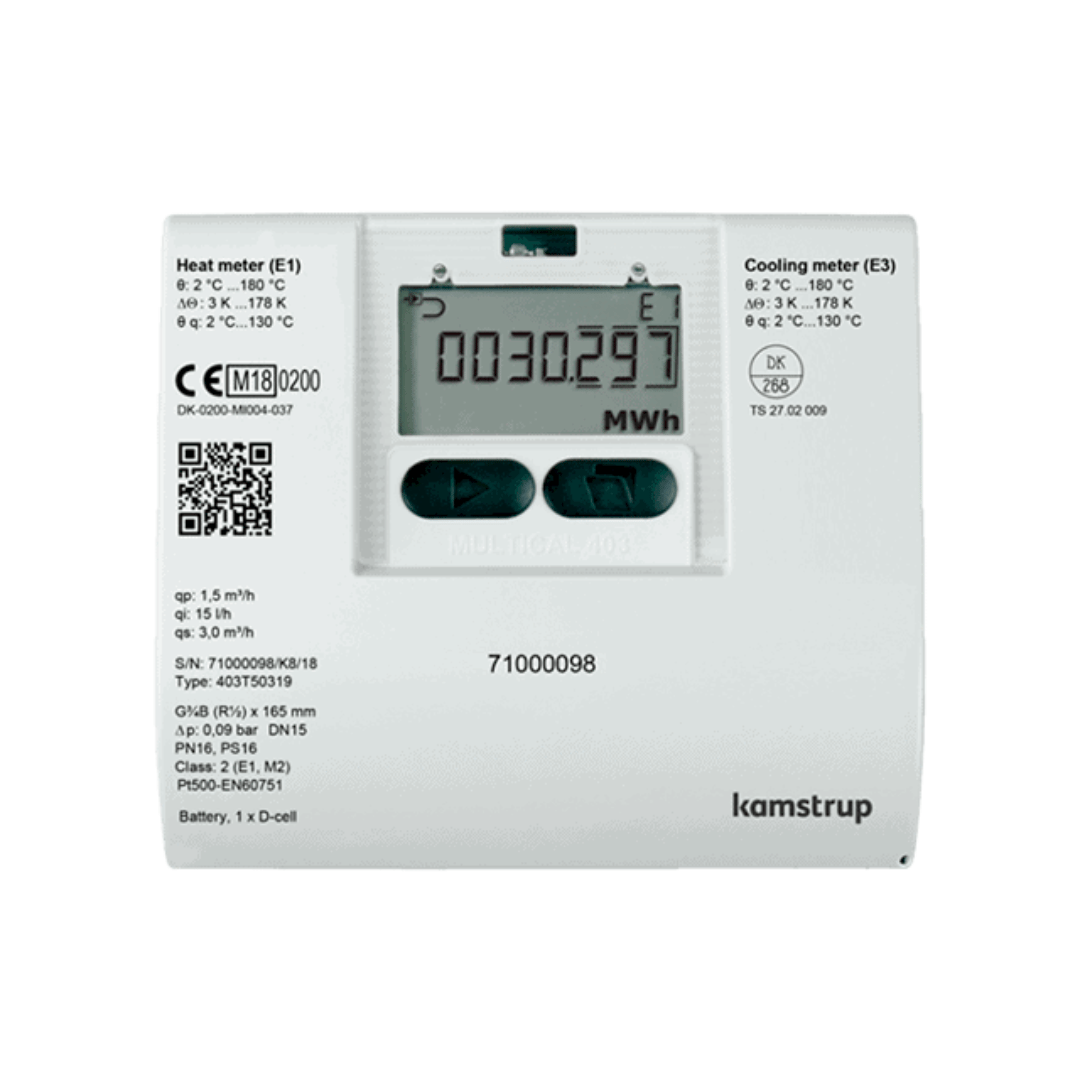

MULTICAL® 403 Energy Meter -The front runner in energy metering
SKU: 403
S$0.00Price
MULTICAL® 403 is a complete all round heat meter with ultrasound. The meter is also available as a cooling meter. The calculator and flow part cannot be separated, but the communication, supply and temperature sensors can be replaced. By using M-Bus, the meter obtains a battery lifetime of up to 16 years with meter readings via the module every 10 seconds. The compact meter imposes minimal installation requirements and provides maximum functionality at a competitive price. The robust design and high quality means that the meter is practically maintenance-free, and the simple setup makes it easy to make configurations directly via the meter's front keys.
Features:
Typical usage
- Area of Use: Residential, small business
- Measuring Principal: Ultrasonic
- Metering Type: Heat, cooling, heat/cooling
- Type: Complete meter - inseparable (temperature sensors - separable)
- Heat (MID) and cooling (TS) approvals: Yes
Key specifications
- Flow sensor cable: 1.5 m
- Temperature sensor cables: 2-wire: ≤ 10 m
- Nominal flow: 0.6 - 15 m3/h
- Sizes: DN15 - DN50
- Protection class: Calculator - IP65
- Flow sensor - IP68
- Pressure loss at nominal flow: Typically < 0.1 bar
- Battery life: Up to 16 years
- Supply: Battery, 24 VAC/VDC, 230 VAC
Communication
- Module slots: 1 slot
- Communication: M-Bus, BACnet, Modbus and analogue output
- Data logger: Programmable logging intervals from 1 minute to 1 year
- Backlit display: No
