Size Range	15...1200 mm
Temperature Range	-40...176° C
Flow Range	2.32...125,000 lpm
Accuracy	± 0.5% ±0.025 ft/s (0.008 m/s)



Simple Clamp-on Design Streamlines Installation

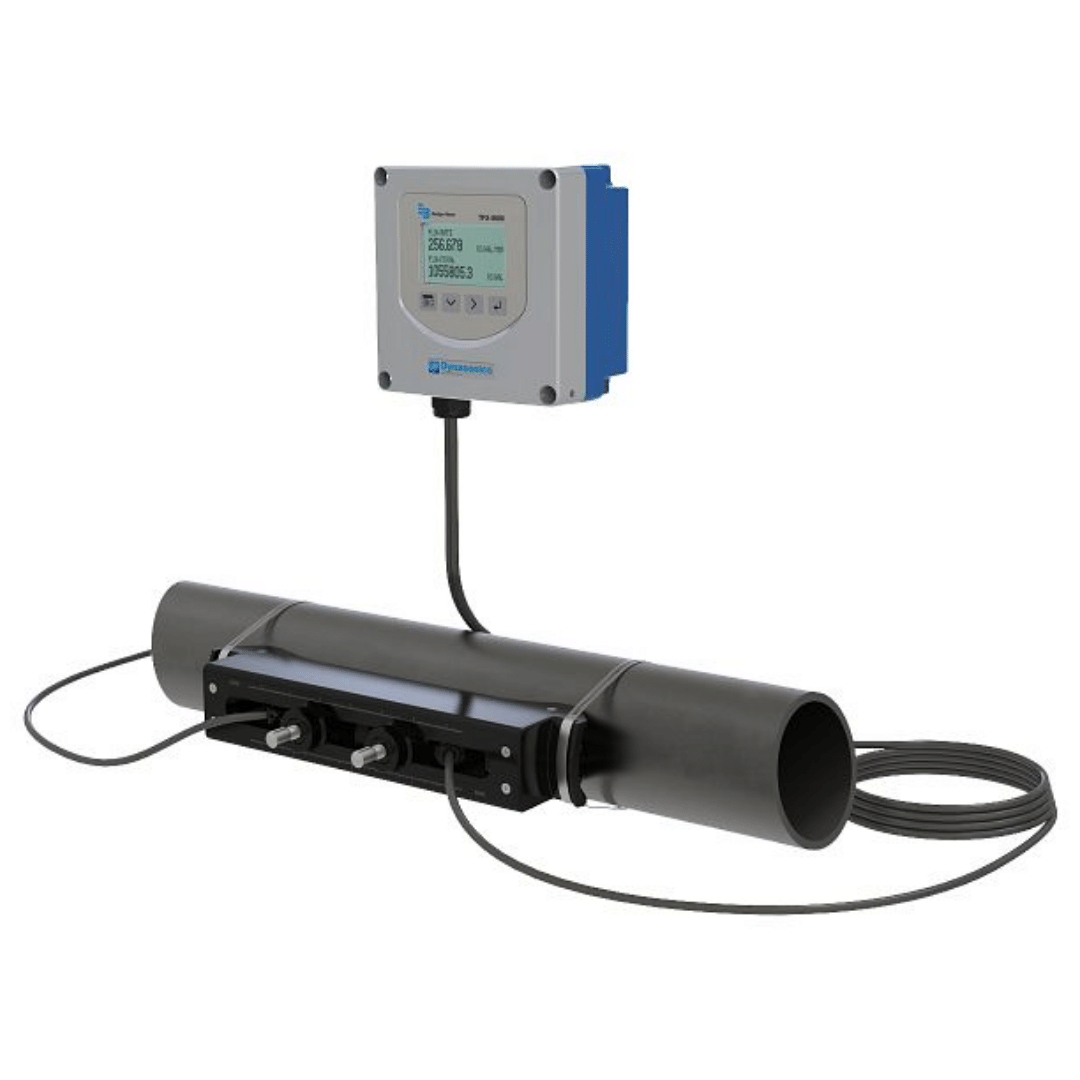

The Dynasonics TFX-5000 Ultrasonic clamp-on flow meter reduces installation time and cost because operations can continue during installation, which can be completed in under an hour by a single person.



Features

• Non-Invasive/Non-Contact. These meters easily attach to a pipe’s exterior and are secured in place without ever penetrating the pipe or coming in contact with the internal liquid. This feature is especially beneficial in settings where the liquid should not be exposed, such as caustic liquids, raw sewage or ultrapure water.

• Flexible Configuration. Available in a variety of configurations, allowing you to select the meter that’s best for your specific application.

• Minimal Maintenance. Has no moving parts, which virtually eliminates the need for maintenance or part replacement over the meter’s lifetime.

• Enhanced Data. Offers BACnet MS/TP (BACnet Testing Laboratories (BTL) Certified), BACnet/IP, EtherNet/IP and Modbus TCP/IP communication protocols and seamlessly integrates into existing operations to provide enhanced data points.



Market Applications

• HVAC Systems
• Data Centers
• Property Operations
• Industrial Process
• Industrial Wastewater
• Wastewater Treatment
• Oil & Gas
• Refining, Chemical & Petrochemical
• Test Equipment & Services
• Environmental Monitoring
• Drinking Water Treatment
• Distribution Network Monitoring
