Andel BundGuard® 6
BundGuard® protects your site 24 hours a day, 7 days a week, 365 days a year.
The BundGuard® bund dewatering system was first developed by Andel in 1992 for the UK electricity industry and its growing need for an effective dewatering solution at substation sites.
Today, over fifty thousand BundGuard® units are installed in over 25 countries around the world, protecting site operators, preventing hydrocarbons from escaping and contaminating the environment.

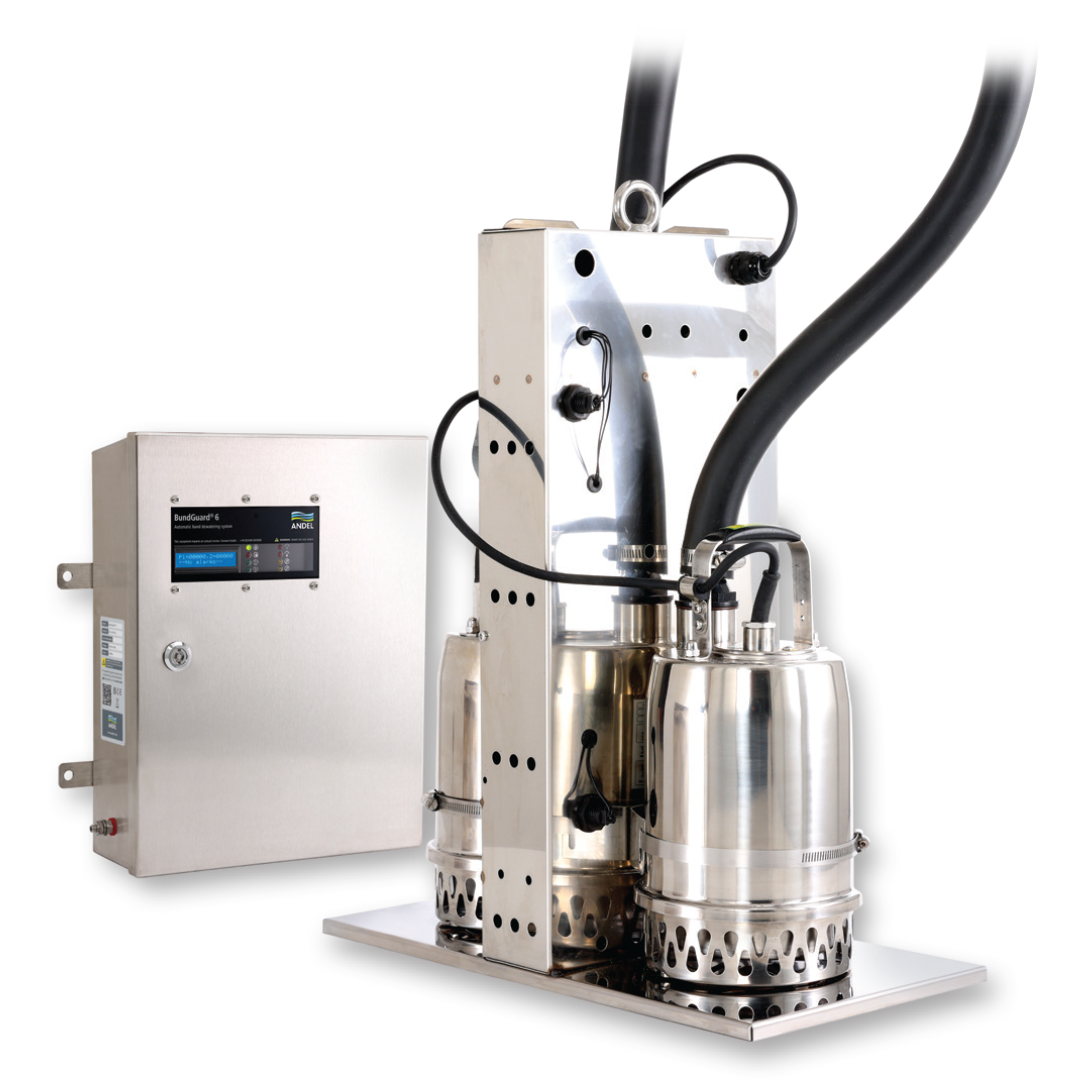

BundGuard® 6 brings the latest functionality and communications technology to Andel’s market-leading bund alarm and dewatering system. BundGuard® 6 is a sustainable, cost-effective and easy-to-fit dewatering and high-oil alarm system, comprising robust UV-resistant control panel, submersible sensor / pump assembly and mounting system.
Available as single-pump or double-pump system
BundGuard® 6 is available as a single or double-pump system to suit site conditions or customer preference. Each pump delivers 140 litres per minute and can run together for maximum performance or alternately to extend service life and reduce wear.

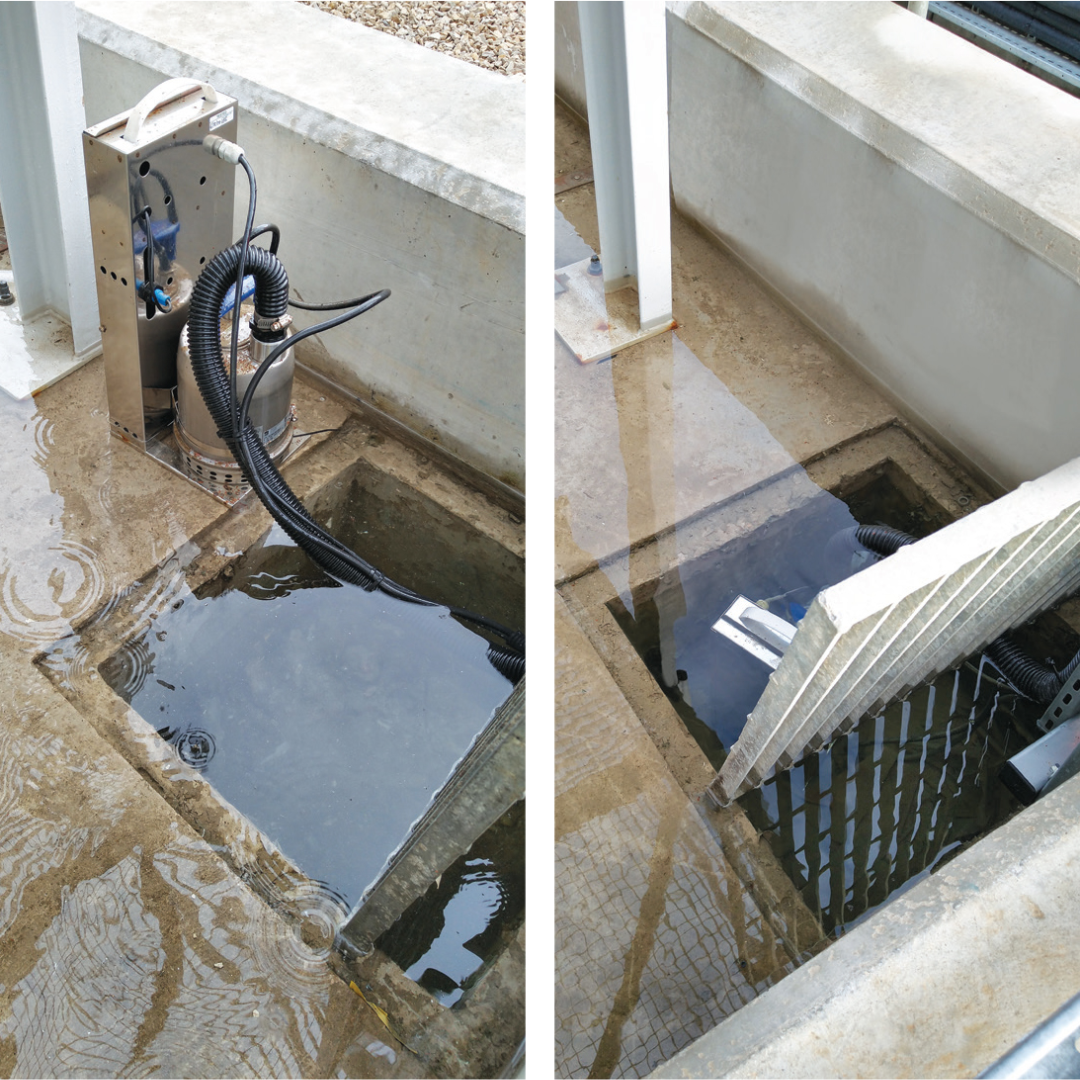

BundGuard® 6 expels rainwater and keeps any oil contained within the sump
BundGuard® 6 discriminates between oil and water, keeping oil contained within the sump and expelling water from the contained or bunded area.
The robust submersible sensor unit monitors the different liquid levels in the sump via a series of conductive probes that can be configured as required. The control panel activates the pump to remove only water that is safe to sewer or interceptor.
Failsafe systems and relay alarm outputs ensure complete safety and allow onward communication to BMS and other remote monitoring systems.
Benefits at a glance
- 10-year control panel warranty
- Low maintenance
- Early warning alarm for abnormal oil level – allowing for timely action to prevent damage to the environment
- Fully automatic water pumping
- Dry sump alarm
- Oil in dry sump alarm
- Array of onward communications – VFC (volt-free contact), Modbus and SMS
- Pump current monitoring and maintenance alarm – extends the life of your pumps
Optional xenon amber flashing alarm beacon
Compact, vandal-proof with light diffuser for improved visibility.
Weatherproof to IP67.
Choice of installation locations.
BundGuard® 6 offers a number of features that provide enhanced control with advanced communications and functionality
- 2-pump integrated stainless-steel submersible sensor unit
- Option for larger pumps if required
- LCD and LED screen menu display
- High oil alarm
- High oil alarm delay (0-60 minutes)
- High water alarm
- Low water alarm
- Low oil alarm – oil in dry bund alarm
- Pump current monitoring and maintenance alarm
- Mains failure alarm
- System fault alarm
- Pump disable alarm
- Connector disconnection alarm
- Textual alarms
- Historical data storage
- Pump delay customisation
- Outlet water meter support
- Auto changeover
- Over-current disable
- Probe conductivity sensitivity configuration
- FilterSepta® integration
- Oil recovery system option via ORS version
- Multi-language support: Polish, French, Italian, Dutch and English
- Battery backup for communications
- Modbus RTU interface
- Configurable parity on Modbus via menu
- Range of volt-free contacts for onward communications to BMS
- 4G GSM modem
- Multiple forwarding numbers for GSM – maximum 5
BundGuard® 6 is robust, reliable and can be adapted to suit a variety of site conditions
BundGuard® 6 ensures compliance with regulations, avoids pollution incidents and removes the need for regular bund emptying by waste contractors, reducing costs, Carbon footprint and environmental impact.
BundGuard® 6 is available in a number of specifications to suit site conditions and customer requirements.
BundGuard® 6 can be relied upon to consistently give accurate readings, avoiding some of the problems associated with other systems such as false readings and repeatedly activating on and off and the risk of pump damage and burning out components.
BundGuard® 6 control panel and submersible sensor unit are built to last and are supplied in robust, stainless-steel enclosures.
With regular maintenance, BundGuard® units have proven to perform for upwards of 15 years in all weather conditions.
Andel achieves Net Zero Scope 1 and 2 in 2025 across all of its operations and pledges to achieve Scope 3 in 2030 – Andel will support customers in achieving and maintaining their own environmental objectives.
